MWIR Cooled Thermal Camera Module with 320x256/30μm Pixel Size for CO₂ Gas Leaks Detection

  • MWIR Cooled Thermal Camera Module with 320x256/30μm Pixel Size for CO₂ Gas Leaks Detection
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification RoHS; Reach
Model Number LFM330Z6
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T
Product Details
Spectral Range 4.2±0.1μm～4.4±0.1μm Function Gas Leak Detection
Cooling Time (23 ℃) ≤8min@12V Detector Resolution 320x256
Pixel Size 30μm NETD 10mK (F1.5)
Highlight

Cooled Thermal Camera Module 320x256

,

Cooled Thermal Camera Module 30uM

,

MWIR Gas Imaging Camera Module
Leave a Message
Product Description

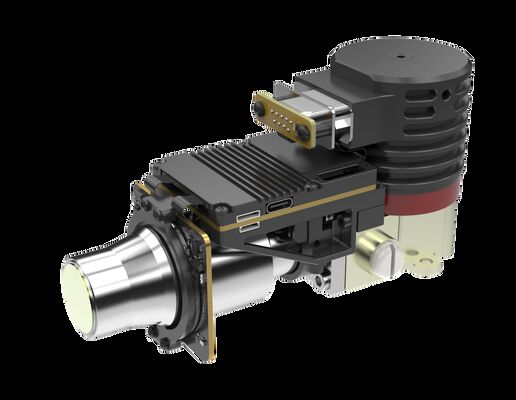

MWIR Cooled Thermal Camera Module 320x256 30μm for CO₂ Gas Leaks Detection
Product Overview

In carbon capture, power equipment operation, and industrial production processes, CO₂ leakage not only leads to the failure of carbon reduction targets, but long-term accumulation may also cause equipment failures. Traditional detection methods are invisible, unsafe, and prone to omission, making it difficult to achieve accurate detection.


The LFM330Z6 thermal module have high-precision and sensitive detection. They can professionally target extremely low concentration CO₂ leakage scenarios, achieve non-contact, long-distance, and visual leakage positioning, and make up for the shortcomings of traditional detection. Meanwhile, CO₂ can also be used as a tracer gas for indirect detection of hydrogen gas, further expanding the application scenarios of the equipment.

Key Features
  • Shortened Development Cycle: High-performance signal processing circuits convert analog to digital signals with 12V power supply for explosion-proof certification
  • Easy & Fast Integration: Cameralink interface outputs 16-bit RAW data with serial port control and integrated structure matching detector dimensions
Technical Specifications
Module Model LFM330Z6
Resolution 320*256
Pixel Size 30μm
Spectral Response 4.2±0.1μm～4.4±0.1μm
Typical NETD 10mK (F1.5)
Frame Rate 30Hz/60Hz
Digital Video Standard: DVP/LVDS/USB2.0
Optional: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode fiber/Multi-mode fiber
Communication Standard: USB2.0/LV-TTL
Optional: RS422/CAN/USB3.0/GigE
Cooling Time (23℃) ≤8min@12V
Stable Power Consumption (23℃) ≤10W
Size 142*58.5*80 mm
Weight ≤680g
Working Temperature -40℃～+71℃
Focal Length 23mm/55mm
Industrial Applications
The LFM330Z6 gas leak detection thermal imaging detector provides reliable visualization of invisible CO₂ plumes in harsh environments across multiple industries: Carbon Capture, Utilization and Storage (CCUS), Enhanced Oil Recovery (EOR), Power Generation, Food & Beverage, Semiconductor & Electronics Manufacturing, Greenhouse Agriculture, and Waste Treatment & Biogas Plants.
Standardized Service & Support
  • Complete Documentation: Product manuals, setup guides, and selection references for seamless implementation
  • Development & Testing Assistance: Sample integrated testing, performance evaluation, and parameter verification services
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration
  • Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues
  • Warranty Coverage: Original parts and strict process adherence to restore optimal performance
Frequently Asked Questions
Applications of LWIR and MWIR/LWIR Dual-color Cooled Infrared Detectors
In infrared thermal imaging technology, long-wave thermal detectors offer strong penetration through dusty atmospheres and are not affected by sun glint effects or light reflections. This enables outstanding image quality in various complex environments such as vehicle operations in dusty conditions, maritime navigation with reflective water surfaces, and aircraft flying through clouds.
Dual-color cooled infrared detectors combine mid-wave and long-wave detection advantages in a single assembly, enabling simultaneous high-performance imaging across both wavebands. This technology significantly reduces false alarm rates and is ideal for detecting complex backgrounds and monitoring high-speed moving targets.
