Gas Leak Visualizing MWIR Optical Gas Imaging Camera with 23mm Lens
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Style | Cooled Infrared Module | Resolution | 320x256 / 30μm |
|---|---|---|---|
| NETD | ≤15mK | Spectral Range | 3.2±0.1~3.5±0.1μm |
| Size | 155x67x80mm | Optional Lens | Fixed Zoom |
| High Light | 23mm Lens MWIR Camera,Gas Leak Visualizing MWIR Camera,ISO9001 Optical Gas Imaging Camera |
||
Product Description
GAS Leakage Detection Camera

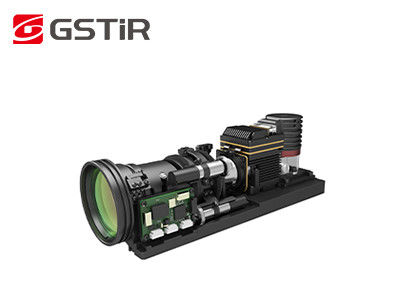

23mm Lens MWIR Optical Gas Imaging Camera For Visualizing Gas Leak
Product Description
GAS330 is a cooled infrared camera module for gas leakage detection. It integrates 320x256 / 30µm MCT cooled MWIR infrared detector to visualize the invisible Volatile Organic Compounds (VOCs) that cannot be seen by naked eyes.
Gas leakage, especially the harmful Volatile Organic Compounds, is always a serious problem that can not be ignored in safety production. Once these harmful gases escape, or worse, cause an explosion, people and property will suffer huge losses. Therefore, great attention should be paid to the detection of gas leakage.
Global Sensor Technology (GST) provides customers with various l infrared thermal imaging integration solutions professional technical supports and a full range of after-sales services of gas leak detection. Camera manufacturers can quickly integrate the infrared module and design their own gas leak detection camera easily and efficiently.
Main Features
- Resolution: 320x256
- Pixel Pitch: 30µm
- NETD≤15mK, High Sensitivity
- Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm
- Wavelength Customizable Based on Different Requirements
- Integrate with DVP/CameraLink Interface Easily
Product Specifications
| Model | GAS330 | GAS330G2 |
| Performance | ||
| Type | MWIR Cooled Thermal Module | |
| Resolution | 320×256 | |
| Pixel Size | 30μm | |
| Cryocooler | Stirling Cooler RS058 | Stirling Cooler RS058I |
| Spectral Range | 3.2μm±0.1μm~3.5μm±0.1μm | |
| Cooling Time (20℃) | ≤8min@25±3℃ | |
| Typical NETD | ≤15mK@25±3℃ | |
| Frame Rate | 30Hz | |
| Gas Detection Type | Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc. | |
| Image Processing | ||
| Imaging Control | Image Direction: Horizontally/Vertically/Diagonally Flip Digital Zoom: 1~10X Continual Zoom Pseudo Color: ≥8 Types Non-uniformity Correction Gas-enhanced Image Algorithm Image Noise Reduction Image Detail Enhancement Dynamic Range Compression |
|
| Electrical Specifications | ||
| Electrical Port | Serial LVDS Port (Standard CameraLink Protocol) Serial Communication Port (RS422) External Sync Port (RS422) Server Port (RS422) Power Supply |
|
| Analog Video | PAL | |
| Digital Video | 16 bit CameraLink (Cameralink Base Mode) 16bit DVP Output/USB (Optional)/Gig-E (Optional) |
|
| Control | RS422, Baud Rate 115200 | |
| Power Supply | 24V DC | 12±1 V |
| Stable Power Consumption | 12W | |
| Temperature Measurement | ||
| Temperature Measurement Range | / | -20℃~400℃ |
| Temperature Measurement Accuracy | / | ±1℃ (0~100℃), ±2% (>100℃) |
| Physical Characteristics | ||
| Size (mm) | 155×67×80 (Without Lens & Accessories) | |
| Weight | ≤900g (Without Lens & Accessories) | |
| Operating Temperature | -40°C~+60°C | -20℃～+50℃ (Imaging) -40℃～+60℃ (Thermography) |
| Explosion-proof Certification | ||
| Explosion-proof Level | / | Ex ic IIC T4 Gc |
| Optics | ||
| Optional Lens | Fixed Zoom: 23mm/F1.5 (FOV 23.58°×18.96°) 55mm/F1.5 (FOV 9.97°×7.99°) |
|
Industrial Applications
The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.
Our Product Line
FAQs
1. Advantages of Optical Gas Imaging
Time-saving & Efficient: support large-scale real-time detection, rapid leak location, no need for interrupting production.
Long Range Detection: away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
Easy to Analyze: intuitive imaging, instant storage, convenient analysis
Multi-function Inspection: a variety of gases can be detected, with excellent remote temperature measurement function
2．Working Principle of Optical Gas Imaging
Optical gas imaging is a kind of infrared technology that could see invisible industrial gases.
After absorbing infrared radiation at specific wavelengths, infrared radiation difference will cause between the gas and the background.
The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
