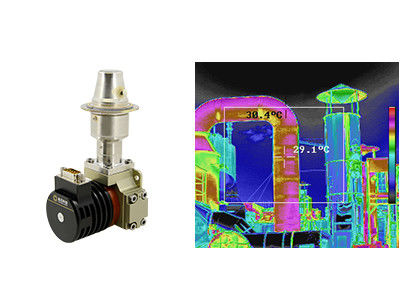

RS058 LS734 MWIR Cooled Thermal Imaging Sensor For Alkanes Leak Detection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFunction | Gas Leak Detection | Cryo Cooler | RS058/RS058I/LS734 |
---|---|---|---|
Detector Resolution | 320x256 | Pixel Size | 30μm |
NETD | ≤15mK | Spectral Range | 3.2±0.1~3.5±0.1μm |
High Light | RS058 Cooled Thermal Imaging Sensor,Alkanes Leak Detection MWIR Sensor |
320x256 30μM MWIR Cooled Thermal Imagin Sensor For Visualizing Gas Leaks
C330M-G cooled infrared detector is specially developed for VOCs gas leak detection with the function of converting infrared radiation of target with 3.2~3.5μm wavelength into electrical signal. Its external mechanical interface, optical interface and electronic interface are commonly used and can be expanded. C330M-G can be widely used in atmospheric environment monitoring and gas leakage detection, pollutant discharge, chemical gas detection in petrochemical plants and refineries.
Optical Gas Imaging
• Long range non-contact detection
• High efficient, secure and wide range of gas leak detection
High Sensitivity
• High sensitive cooled infrared detector, quite efficient in application of low gas concentration and slow gas flow
• Effective leak detection includes Alkanes, Alkenes, Alcohols, Benzenes, Ketones and other gases
Designed for Requirements of Users
• Support 12V power supply for explosion-proof certification
• Various cryocoolers available for light weight, low power, long life and high reliability
• Customizable spectral range: 3μm~5μm MWIR (for more gas detection types: CO, CO2 etc.)
Model | C330M-G | ||
Sensitive Material | HgCdTe/MCT | ||
Resolution | 320×256 | ||
Pixel Size | 30μm | ||
Spectral Range | 3.2μm±0.1μm~3.5μm±0.1μm (Cusomizable Range: 3μm~5μm) | ||
Working Mode | Snapshot; ITR Integration Mode; Windows Mode; Anti-blooming | ||
Charge Capacity | 36Me-/12Me- | ||
Dynamic Range | ≥80dB | ||
Number of Output | 1 or 4; Up to 6.6MHz/per Output | ||
Typical NETD | 10mK (F1.5) | ||
Effective Pixel Rate | ≥99.5% | ||
Response Non-uniformity | ≤8% | ||
Cryocooler | RS058 | RS058I | LS734 |
Cooler Type | Integral Rotary Stirling Cooler | Integral Rotary Stirling Cooler | Linear Rotary Stirling Cooler |
Stable Power Consumption | ≤7W | ≤7W | ≤10W |
Max. Power Consumption | ≤15W | ≤15W | ≤45W |
Power Supply | 24V DC | 12V DC | 24V DC |
Cooling Time | ≤6min30s | ≤7min | ≤5min |
Size (mm) | 142x58.5x71 | 142×58.5×71 | Compressor Φ46×122 Dewar Φ40×114 |
Weight | ≤600g | ≤600g | ≤1.2kg |
Working Temperature | -45°C ~ +71°C |
The C330M-G gas leak detection cooled MWIR thermal imaging detector is used for customers who have strong development ability. By integrating this cooled thermal sensor, the invisible VOCs (volatile organic compounds) can be detected and visualized so that further damage can be avoided. These gases includes such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.
FAQs
1.In which industries are focal plane array infrared detectors used in?
Infrared focal plane detector is the core component of thermal imaging system, and is the key to detect, identify and analyze infrared information of objects. It has a wide range of applications in traffic, inspection, security monitoring, meteorology, medicine and other industries.
2. What are the characteristics of cooled & uncooled infrared focal plane detector?
Infrared focal plane detectors can be divided into cooled infrared focal plane detector and uncooled infrared focal plane detector. Cooled infrared detector works at a low temperature vacuum environment with high sensitivity and can distinguish more subtle temperature differences, while uncooled infrared focal plane detector does not need a cryogenic environment and can work at room temperature.
