Radiation Free Infrared Camera Module For Medical Thermal Image Screening
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Spectral Range||8~14μm||Pixel Pitch||17μm|
|Typical NETD||＜50mk||Frame Rate||25Hz|
Radiation Free Infrared Camera Module,
Medical Infrared Camera Module 384x288,
Medical Thermal Image Camera Module

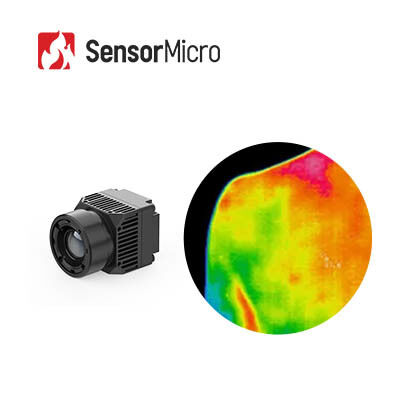

Radiation-Free Infrared Camera Module For Medical Thermal Image Screening
iHA417W thermal module is specially developed for medical diagnosis. The captured temperature data and heat distribution of target can be used to achieve radiation-free, non-invasive early disease diagnosis and long-distance, large-scale body temperature screening.
It is mainly composed of wafer-level-packaging 384×288/17μm infrared detector, optical lens and SDK for temperature measurement with accuracy up to ±0.5℃.
Without external black body, the iHA417W thermal imaging module has a compact & light structure, which guarantees a lower integration cost. It has two modes of detect distance: 0.5m (for medical diagnosis) and 5m (for epidemic prevention and animal thermography).
iHA417W thermal camera module has an all-in-one standard Type-C interface with power supply, data transmission and control, customers can quickly develop and integrate various temperature measuring systems like medical diagnosis and epidemic prevention.
- Small Size: 25.4mm×25.4mm×30.3mm (with lens)
- Typical NETD<50mk
- Detect Distance: 0.5m/5m
- Light Weight as Low as 32.2g
- Superior Temperature Measurement Accuracy: ±0.5℃
|IR Detector Performance|
|Image Display||Black Hot/White Hot/Pseudo Color|
|Standard External Interface||Type-C|
|Typical Power Consumption||0.85W|
|Operating Temperature Range||-10°C ~ +50°C|
|Temperature Measurement Range||15℃ ~ 50℃|
|Temperature Measurement Accuracy||≤±0.5℃ (No wind indoor, target temperature range 32℃~42℃)|
|Measuring Distance||Two Modes: 0.5m or 5m|
|SDK||Support Windows/Android/Linux SDK, Achieve Full Screen Thermography|
|Size (mm)||≤25.4×25.4×30.3 (With 9.1mm Lens)|
|Weight||32.2±3g (With 9.1mm Lens)|
|Operating Temperature||-40°C ~ +70°C|
|Storage Temperature||-45°C ~ +85°C|
|Vibration||Random Vibration 5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 9.1mm|
The iHA417 thermal module is expected to be widely used in the fields of Disease Screening, Traditional Chinese Medicine Physiotherapy, Health Check-up, Rehabilitation etc. at present and in the future.
1. What is thermal sensitivity?
Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It is directly related to the clarity measured by the thermal imager. It is a numerical value representing the signal-to-noise ratio of the temperature difference and measured in milliKelvins (mK). The smaller the thermal sensitivity value, the higher the sensitivity and the clearer the image.
2. What are the applications of thermal imaging?
Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in security & monitoring, UAV payloads, industrial inspection, firefighting, predictive maintenance, ADAS, epidemic prevention, AIoT etc.
