Medical Health Check Uncooled Thermal Module 384x288 17μM With 9.1mm Lens
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Spectral Range||8~14μm||Pixel Pitch||17μm|
|Typical NETD||＜50mk||Frame Rate||25Hz|
Medical Uncooled Thermal Module,
Health Check Uncooled Thermal Module,
9.1mm Lens Thermal Camera

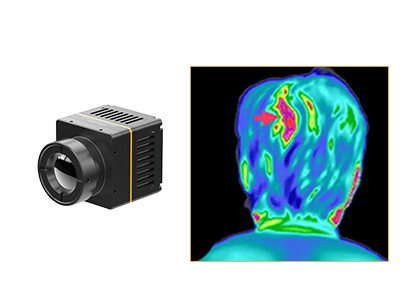

Uncooled 384x288/17μM Thermal Module With 9.1mm Lens Use In Medical Health Check
iHA417W thermal module is specially developed for medical diagnosis. It is integrated with self-developed wafer level packaging 384×288/17μm infrared detector, 9.1mm lens, 30pin standard interface (Optional Type-C expansion board) and a dedicated SDK for medical temperature measurement.
There are two modes of temperature measurement distance: 5 meters and 0.5 meters, which can be used in various scenarios. The iHA417 medical diagnosis thermal module has a better temperature measurement consistency and superior temperature measurement accuracy of ±0.5°C. No need for built-in black body ensures a compact design and easier temperature measurement.
The iHA417W thermal camera module can be quickly integrated into various medical thermal imaging devices, and it is expected to be widely used in the fields of Disease Screening, Traditional Chinese Medicine Physiotherapy, Health Check-up, Rehabilitation etc. at present and in the future.
- Small Size: 25.4mm×25.4mm×30.3mm (with lens)
- Typical NETD<50mk
- Detect Distance: 0.5m/5m
- Light Weight as Low as 32.2g
- Superior Temperature Measurement Accuracy: ±0.5℃
|IR Detector Performance|
|Image Display||Black Hot/White Hot/Pseudo Color|
|Standard External Interface||Type-C|
|Typical Power Consumption||0.85W|
|Operating Temperature Range||-10°C ~ +50°C|
|Temperature Measurement Range||15℃ ~ 50℃|
|Temperature Measurement Accuracy||≤±0.5℃ (No wind indoor, target temperature range 32℃~42℃)|
|Measuring Distance||Two Modes: 0.5m or 5m|
|SDK||Support Windows/Android/Linux SDK, Achieve Full Screen Thermography|
|Size (mm)||≤25.4×25.4×30.3 (With 9.1mm Lens)|
|Weight||32.2±3g (With 9.1mm Lens)|
|Operating Temperature||-40°C ~ +70°C|
|Storage Temperature||-45°C ~ +85°C|
|Vibration||Random Vibration 5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 9.1mm|
The iHA417 thermal module is expected to be widely used in the fields of Disease Screening, Traditional Chinese Medicine Physiotherapy, Health Check-up, Rehabilitation etc. at present and in the future.
1. What is NETD?
NETD refers to "Noise Equivalent Temperature Difference". It is a measure for how well a thermal imaging detector is able to distinguish between very small differences in thermal radiation in the image. NETD is typically being expressed in milli-Kelvin (mK). Usually the lower the NETD figure is, the higher the thermal sensitivity indicates.
2. What is SWaP3?
SWaP3 refers to size, weight, power, performance and price. It indicates the technology trend of infrared industry.
3. What is DRI?
DRI usually refers detection, recognition and identification distance of a thermal imaging system. It is a crucial parameter to judge the performance of the thermal imaging system.
