Non Invasive Infrared Camera Core For Thermal Imaging System Medical Diagnosis

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number iHA417W
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 384x288 Power Consumption 0.85W
Spectral Range 8~14μm Pixel Pitch 17μm
Typical NETD <50mk Frame Rate 25Hz
High Light

Non Invasive Infrared Camera Core

,

Medical Diagnosis Infrared Camera Core

Leave a Message
Product Description

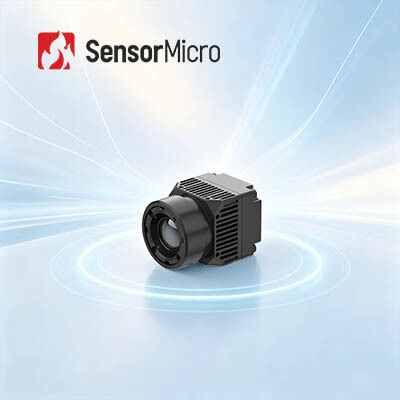

iHA417W Medical Diagnosis Thermal Module


Low Cost Infrared Camera Core For Thermal Imaging System Medical Diagnosis



Product Description



iHA417W thermal module is specially developed for medical diagnosis. Integrated with the self-developed wafer level packaging 384×288/17μm infrared detector by Global Sensor Technology, the iHA417W medical diagnosis thermal module has smaller size, which guarantees a lower integration cost. It helps to develop medical and health markets at all levels faster, and lets thermal imaging technology benefit the public.



With typical NETD<50mk/f1.0/25℃, and temperature uniformity ≤±0.3℃ (better than the industry average of ±0.5℃), the overall thermal imaging uniformity of iHA417W thermal imaging module is better, and its temperature measurement function is more stable.



By using thermal imaging technology, doctors can carry out 100% safe, no radiation, non-invasive, non-contact full body checkup to avoid further, unnecessary testing procedures. The heat distribution in various parts of human body can be quickly shown to early detect and diagnose physical abnormalities, so that any further treatment can be easier and more effective.



Main Features


- Small Size: 25.4mm×25.4mm×30.3mm (with lens)
- Typical NETD<50mk
- Detect Distance: 0.5m/5m
- Light Weight as Low as 32.2g
- Superior Temperature Measurement Accuracy: ±0.5℃



Product Specifications



Model iHA417W
IR Detector Performance
Resolution 384×288
Pixel Size 17μm
Spectral Range 8~14μm
Typical NETD <50mk
Image Processing
Frame Rate 25Hz
Start-up Time 5s
Digital Video RAW/YUV
Image Display Black Hot/White Hot/Pseudo Color
Image Algorithm NUC/3DNR/DNS/DRC/EE/SFFC
Electrical Specification
Standard External Interface Type-C
Communication Mode USB
Supply Voltage 5±0.5V
Typical Power Consumption 0.85W
Temperature Measurement
Operating Temperature Range -10°C ~ +50°C
Temperature Measurement Range 15℃ ~ 50℃
Temperature Measurement Accuracy ≤±0.5℃ (No wind indoor, target temperature range 32℃~42℃)
Measuring Distance Two Modes: 0.5m or 5m
SDK Support Windows/Android/Linux SDK, Achieve Full Screen Thermography
Physical Characteristics
Size (mm) ≤25.4×25.4×30.3 (With 9.1mm Lens)
Weight 32.2±3g (With 9.1mm Lens)
Environmental Adaptability
Operating Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 9.1mm
Certificate
Standard ROHS/REACH



Detect Distance

Non Invasive Infrared Camera Core For Thermal Imaging System Medical Diagnosis 0

Industrial Applications


The iHA417 thermal module is expected to be widely used in the fields of Disease Screening, Traditional Chinese Medicine Physiotherapy, Health Check-up, Rehabilitation etc. at present and in the future.
Non Invasive Infrared Camera Core For Thermal Imaging System Medical Diagnosis 1

Our Advantages




Non Invasive Infrared Camera Core For Thermal Imaging System Medical Diagnosis 2


FAQs



1. What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3. What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening
