640x512 Resolution Infrared Thermal Module with 8μm Pixel Pitch for Medical-Level Tuning
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | RoHS2.0; Reach |
| Model Number | iHA608W |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 | Power Consumption | 0.6W |
|---|---|---|---|
| Spectral Range | 8~14μm | Pixel Pitch | 8μm |
| Typical NETD | ≤30mK | Frame Rate | 25Hz |
| Highlight | Infrared Thermal Module 384x288,Skin Temperature Infrared Thermal Module |
||
Product Description

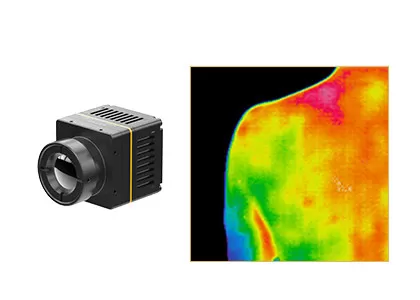

640x512 Infrared Thermal Module 8μm for Measuring Human Body Temperature
Product Overview
The iHA608W uncooled infrared camera core is specifically engineered for medical-level non-contact body temperature measurement. Built on the ApexCore 640×512/8μm detector and fully calibrated for precision, it achieves ±0.5-degree measurement accuracy. Advanced medical image processing algorithms optimize thermal image details and accurately render temperature distribution for reliable results.
Main Features
- Medical-level Tuning: Specially calibrated for non-contact body temperature reading with ±0.5°C accuracy
- Medical-grade Optics: High-quality optical lens combined with exclusive medical thermal algorithms
- Optimized Miniaturization: Ultra-compact design using 8-μm infrared detector technology
- Compact Dimensions: 21×21×31.5 mm size and 25±2g weight for easy integration
- Flexible Connectivity: Type-C video and USB2.0 dual interfaces
- Comprehensive Development Support: Complete SDK for Windows, Android, and Linux OS
Product Specifications
| Model | iHA608W |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 640×512 |
| Pixel Size | 8μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤30mK |
| Image Processing | |
| Digital Frame Rate | 25Hz |
| Start-up Time | ≤6s |
| Digital Video | RAW/YUV/TMP |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Image Display | Medical/Pseudo Color |
| Temperature Measurement | |
| Operating Temperature | 10℃~+50℃ |
| Temperature Measurement Range | 32℃~+42℃ |
| Temperature Measurement Accuracy | ≤±0.5℃ (after 2-minute warm-up, ambient 23±3°C, target 32-42°C) |
| Measurement Distance | 0.5m-5 m; supports multi-distance temperature measurement via SDK |
| Electrical | |
| Standard External Interface | USB(TYPE-C) |
| Communication Interface | USB |
| Digital Video Interface | USB2.0 |
| Supply Voltage | 5V±0.5 |
| Typical Power Consumption | 0.6W |
| Optical Lens | |
| Focus Length | 4mm |
| Type of Lens | Fixed Focus Athermal |
| F/# | 1 |
| FOV(H×V) | 69.2°×55.4° |
| Mechanical | |
| Size (including lens) | 21mm×21mm×31.5mm (including 4mm lens) |
| Weight (including lens) | 25g±2 (including 4mm lens) |
| Environmental Adaptability | |
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction, 3 Axis, 6 Direction |
| ESD | 6kV contact discharge; 8kV air discharge |
| Certification | |
| Environmental Certification | ROHS2.0/REACH |
Industrial Applications
The iHA608W thermal module is designed for widespread use in medical and healthcare applications including Disease Screening, Traditional Chinese Medicine Physiotherapy, Health Check-up, Rehabilitation, and related fields.
Our Core Strengths
Stable Supply
Boasting a stable and reliable supply chain across our full ecosystem, we can respond quickly to market demands.
Sustaining Innovation
With expertise in detector manufacturing and experience in supporting system integration, we gain deep insight into performance requirements, continuously optimize designs, and create a virtuous cycle: Product Application → Technical Feedback → Product Upgrade.
Frequently Asked Questions
What is infrared detector / thermal imaging sensor?
Infrared waves cannot be seen with the human eye. Infrared detector / thermal imaging sensor is an optical-electrical device that reacts to infrared radiation and thermal energy and converts it into electrical signal and then outputs visible thermal images.
What is WLP?
WLP refers to wafer level package. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared sensor. Together with metal package and ceramic package, they are the 3 main package formats of uncooled infrared detectors.
What's the advantage of WLP?
WLP IR detectors are specially designed to meet the miniaturization and low cost requirement in the application of infrared technology to consumer electronics market. We are now offering a variety of WLP infrared module solutions to boost more new applications of emerging markets.
