VOx Uncooled Thermal Camera Core with 640x512 Resolution 12μm Pixel Size and Longwave 8~14μm Spectral Range
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN612G2 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 / 12μm | Frame Rate | 25Hz/30Hz/50Hz |
|---|---|---|---|
| Digital Video | RAW/YUV422 | Analog Video | PAL/NTSC |
| NETD | ≤25mK/F1.0/25℃ | Spectral Range | 8~14μm |
| Highlight | Longwave FPA Thermal Camera Core,VOx Uncooled Thermal Camera Core,8X Continual Zoom Uncooled Thermal Module |
||
Product Description

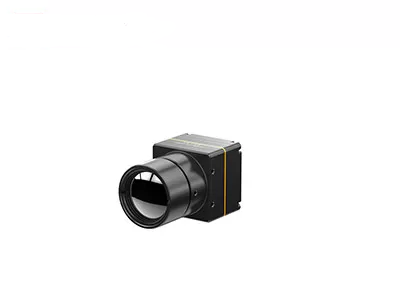

VOx Uncooled Thermal Camera Core 640x512 / 12μm Longwave with Various IR Lenses
Product Overview
COIN612G2 uncooled infrared module integrates 640x512 / 12μm wafer level package (WLP) infrared imaging detector, high performance signal processing circuit and image processing algorithm. Thanks to the wafer level packaging technology, the WLP infrared detector has simpler manufacturing process and easier to be integrated, which is more suitable for high volume and low cost production.
The COIN612G2 infrared module features sharp and crisp thermal image presentation, compact size and low cost. Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. It's easier for COIN series infrared modules to be integrated into more terminal products and greatly reduces the cost for customers.
Main Features
- Comprehensive Functionality, Cost-Effective Solution
• Developed with a high-performance, cost-efficient ApexCore wafer-level infrared detector with NETD ≤25mK
• Combines a mainstream FPA with advanced image processing algorithms to enhance image quality - Compact Structure, Lightweight Design
• Dimensions: 25.4×25.4×15.7mm
• Weight: 15±1g, Power consumption≤0.65W - Versatile Configuration, Rapid Integration
• Multiple lens options available to meet various application requirements
• Supports USB 2.0/DVP/LVDS/BT.656 image output interfaces
• Outputs RAW/YUV image data with serial port control
Product Specifications
| Model | COIN612G2 |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤25mK/F1.0/25℃ |
| Image Processing | |
| Digital Frame Rate | 25/30/50Hz |
| Start-up Time | 6s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV422 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0/USB2.0/VPC/USB2.0&VPC |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | DVP8/DVP16/USB2.0/BT.656/LVDS |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 0.65W |
| Mechanical | |
| Bare Core Size(mm) | 25.4×25.4×15.7 |
| Bare Core Weight(g) | 15±1g |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm/35mm/50mm/70mm |
| Protection Level | IP67(Front Lens) |
Industrial Applications
The COIN612G2 infrared camera core is widely used in Security Monitoring, Industrial Vision, Outdoor Observation, Firefighting & Rescue, ADAS, Machine Vision etc.
Our Advantages
- Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
- On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
- Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
What is Pseudo Color?
Pseudo color, also called false color, the thermal distribution of objects can be transformed into visual pictures by the infrared thermal imaging system and displayed on the monitor in grey level or pseudo color. Thus the temperature distribution of objects can be obtained. To make it easier for people to easily analyze a thermal image visually it is represented using a false colors representing the difference in temperature.
How many pseudo color can SensorMicro thermal imaging module offer?
- White Hot
- Lava
- Ironbow
- Hot Iron
- Medical
- Arctic
- Rainbow1
- Rainbow2
- Red Hot
- White Hot
