iSE612 Uncooled Infrared Camera Core with 640x512 Resolution 12μm Pixel Pitch and NETD ≤20mK
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iSE612 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Type | Uncooled Infrared Module | Resolution | 640x512 / 12μm |
|---|---|---|---|
| Typical Power Consumption | 0.8W@50Hz@23±3℃ | NETD | ≤20mK |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | Digital Video | YUV420/YUV422/RGB888/RAW |
| Highlight | Uncooled LWIR Camera Core 640x512,LWIR Uncooled Camera Core,640x512 Uncooled Camera Core |
||
Product Description

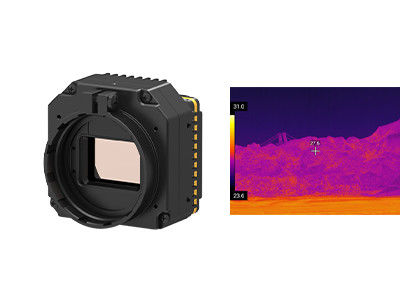

Clear Thermal Imaging iSE612 LWIR Uncooled Infrared Camera Core 640x512/12μm
Product Overview
The iSE612 is an uncooled IR thermal camera module from SensorMicro's iSE series. Featuring a 640x512/12μm uncooled thermal sensor, comprehensive optical components, signal processing circuitry, and advanced image processing algorithms, this thermal imaging core delivers exceptional clarity and superior performance.
This uncooled thermal module is designed for applications including Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, and Consumer Electronics.
Main Features
- Smooth, Stable, and High Cost-effective: No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems. Utilizes high cost-effective ApexCore ceramic-packaging detector with NETD≤20mK.
- Compact and Lightweight, Flexible for Integration: Dimensions as small as 25.4×25.4×22.7mm, bare core weight ≤26±1.5g. Space-saving structural design allows flexible system layout and integration.
- Rich Features for Seamless Integration: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with multiple optical lenses and extension components for easy secondary development and system customization.
Product Specifications
| Model | iSE612 | |
|---|---|---|
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 640×512 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD |
≤20mK |
|
| Image Processing | ||
| Digital Frame Rate | 50Hz | |
| Start-up Time | 6s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| Shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Compensation Mode | Manual | |
| Electrical | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Communication Interface | TTL-232/USB2.0 | |
| Digital Video Interface | DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE | |
| Extension Components | USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 0.8W@50Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size | 25.4×25.4×22.7mm | φ36×24.3mm |
| Bare Core Weight | 26±1.5g | 28±1.5g |
| Optical Lens | Fixed Focus Athermal: 4.8/9.1/13/19mm |
|
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 1500g@0.4ms |
| Vibration |
5.35g, Random Vibration, 3-axis |
|
| Shutter Components | Optional | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Certification | ROHS2.0/REACH | |
Industrial Applications
The iSE612 thermal camera module is widely used in Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics, and related fields.
Our Advantages
- Complete Documentation: Product manuals, setup guides, and selection references for immediate implementation.
- Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification services.
- Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
- Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues.
- Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
What is Pseudo Color?
Pseudo color, also called false color, transforms the thermal distribution of objects into visual pictures through the infrared thermal imaging system, displayed on the monitor in grey level or pseudo color. This enables visualization of temperature distribution. To facilitate easier analysis, thermal images are represented using false colors that correspond to temperature differences.
How many pseudo color modes can SensorMicro thermal imaging module offer?
The module offers multiple pseudo color modes including: White Hot, Lava, Ironbow, Hot Iron, Medical, Arctic, Rainbow1, Rainbow2, and Red Hot.
