|Resolution:||640x512 / 15μm||NETD:||≤17mK|
MWIR Camera Core 640x512,
Fast Integration MWIR Camera Core,
High Sensitivity MCT Thermal Camera Core

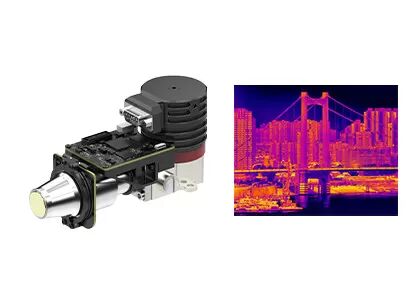

High Sensitivity 640x512@15μm RS058 MCT MWIR MCT MWIR Cooled Infrared Module With Proximity Board
EYAS615A AD module is an analog-digital cooled infrared module based on 640x512 formats 15μm pitch IR FPA. The typical NETD of EYAS615A is less than 17mK. The high sensitivity ensures detection or recognition for very tiny infrared radiation difference at very long distance.
This AD module includes a proximity board that provides the FPA timing, and the sensitive power supplies. In addition, the Camera Link interface outputs 16bit raw data which highly simplifies the integration of the detector to the system.
Therefore, EYAS615A module makes it easy for OEM customers to carry out fast acceptance test on GST C615M 640x512@15μm cooled infrared detector, start rapid secondary development and shorten their development period of cooled infrared modules or complete infrared thermal cameras or systems based on cooled infrared detectors.
- Easy to Develop & Integrate
- Cameralink Interface Output 16bit Raw Data, Serial Port Control
- Integrated Structure, Dimensions are Consistent with Detector
- 5V Single-supply
- Capable of Capturing High Speed Moving Target
|IR Detector Performance|
|Spectral Range||3.7μm～4.8μm MW|
|Cooling Time (25°C)||≤6min|
|Optimal NETD (20°C)||≤17mK|
|Frame Rate||1~120Hz Adjustable|
|Working Mode||Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming|
|Standard External Interface||QSH 60 pin|
|Digital Video||Cameralink: Output 16bit Raw Data|
|External Sync||CC1: INT/Frame External Sync; CC2: MC External Sync|
|Communication||Cameralink Serial Port: TFG+/-, TC+/-; 9600bps|
|Power Supply||1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
|Stable Power Consumption||7W|
|Working Temperature||-40°C ~ +60°C|
|Vibration Magnitude||Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
The EYAS615A thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
1. What is thermal sensiivity?
Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It is directly related to the clarity measured by the thermal imager. It is a numerical value representing the signal-to-noise ratio of the temperature difference and measured in milliKelvins (mK). The smaller the thermal sensitivity value, the higher the sensitivity and the clearer the image.
2. What are the applications of thermal imaging?
Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in security & monitoring, UAV payloads, industrial inspection, firefighting, predictive maintenance, ADAS, epidemic prevention, AIoT etc.
