Security Monitoring MWIR Cooled Infrared Detector 640x512 12μm

I'm Online Chat Now

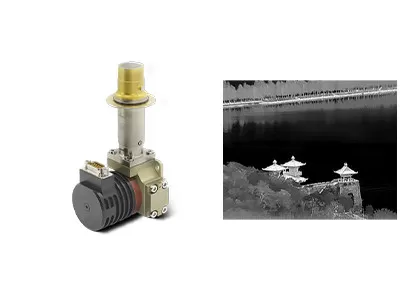

Security Monitoring MWIR Cooled Infrared Detector 640x512 12μm

Security Monitoring MWIR Cooled Infrared Detector 640x512 12μm
Security Monitoring MWIR Cooled Infrared Detector 640x512 12μm

Large Image :  Security Monitoring MWIR Cooled Infrared Detector 640x512 12μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C615M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Application: Security Monitoring Technology: Infrared Thermal Imaging
Spectral Range8~14μm: 3.7~4.8μm MW Resolution: 640x512/12μm
Operation Temperature: -45℃~+71℃ NETD: ≤17mK (F2); ≤18mK (F4)
High Light:

Security Monitoring MWIR Cooled Infrared Detector

,

12um Resolution Cooled Infrared Detector

,

640x512 MWIR Detector

Clear Thermal Imaging MWIR Cooled Ir Detector 640x512 / 15μM

About C615M Cooled Infrared Detector



Clear Thermal Imaging MWIR Cooled Infrared Detector 640x512 / 15μm



Product Description



C615M MWIR is one of the HgCdTe/MCT cooled infrared detectors developed by Global Sensor Technology (GST). It is with the most popular 640x512@15μm spec for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.



The C615M RS058 is interchangeable with most mainstream Scorpio like products when configured with RS058 integrated stirling cooler. The dewar design, the cooler dimension, and the mechanical/electrical interface are almost the same so that the camera integrators only need to take out their old defective counterpart and connect our interchangeable C615M RS058 easily for further internal configuration.



 Main Features



Sharp & Clear Imaging
• Good uniformity, effective pixel rate>99.5%
• High sensitivity, typical NETD as low as 17mK



Guaranteed Continuous Supply
• Interchangeable standard interface
• Mass production, good consistency



Designed for Specific Applications
• Wavelength can be customized
• F number can be customized
• Mounting surface can be customized
• Multiple cryocooler available



Product Specifications



Model C615M MW
Material MCT
Resolution 640x512
Pixel Pitch 15μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 9.1Me-/6.5Me-(ITR)
7.8Me-/5.2Me-(IWR)
Dynamic Range ≥75dB
Number of Output 4; Up to 10Mpixel/s per Output
NETD F2: ≤17mK
F4: ≤18mK
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058/RS046
Steady Power Consumption ≤6W@RS058
≤5W@RS046
Max Power Consumption ≤12W @ RS058
≤11W @ RS046
Power Supply RS058: 24V DC
RS046: 32V DC
Cooling Time ≤6min @ RS058
≤5min30s @ RS046
Weight ≤600g @ RS058
≤350g @ RS046
Dimension (mm) RS046: 122x46.3x82
RS058: 147x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C615M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

Security Monitoring MWIR Cooled Infrared Detector 640x512 12μm 0



Global Sensor Technology Team


Security Monitoring MWIR Cooled Infrared Detector 640x512 12μm 1


FAQs



1.What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.



2. What is the advantage of infrared thermal imaging?

---See through total darkness;

---Identification under camouflage;

---Long range detection;

---Heat distribution detection;

---Non-contact temperature measurement;

---Occupation awareness



3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
