Home ProductsIntegrated Dewar Cooler Assembly

Clear Thermal Imaging MWIR Cooled Ir Detector 640x512 / 15μM

I'm Online Chat Now

Clear Thermal Imaging MWIR Cooled Ir Detector 640x512 / 15μM

Clear Thermal Imaging MWIR Cooled Ir Detector 640x512 / 15μM
Clear Thermal Imaging MWIR Cooled Ir Detector 640x512 / 15μM

Large Image :  Clear Thermal Imaging MWIR Cooled Ir Detector 640x512 / 15μM

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C615M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Spectral Range8~14μm: 3.7~4.8μm MW Technology: Infrared Thermal Imaging
Operation Temperature: -45℃~+71℃ Resolution: 640x512/12μm
Application: Security Monitoring NETD: ≤17mK (F2); ≤18mK (F4)
High Light:

Clear Thermal Imaging Cooled Ir Detector

,

MWIR Cooled Ir Detector 640x512

,

15uM Integrated Dewar Cooler Assembly

About C615M Cooled Infrared Detector



Clear Thermal Imaging MWIR Cooled Infrared Detector 640x512 / 15μm



Product Description

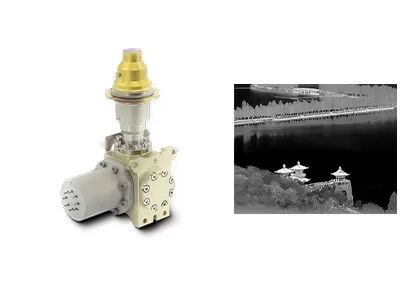

C615M MWIR is one of the HgCdTe/MCT cooled infrared detectors developed by Global Sensor Technology (GST). It is with the most popular 640x512@15μm spec for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.



The C615M RS058 is interchangeable with most mainstream Scorpio like products when configured with RS058 integrated stirling cooler. The dewar design, the cooler dimension, and the mechanical/electrical interface are almost the same so that the camera integrators only need to take out their old defective counterpart and connect our interchangeable C615M RS058 easily for further internal configuration.



 Main Features



- Resolution: 640x512

- Pixel Pitch: 15μm

- High Sensitivity

- Compact Design

- Lightweight

- Low Power Consumption



Product Specifications



Model C615M MW
Material MCT
Resolution 640x512
Pixel Pitch 15μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 9.1Me-/6.5Me-(ITR)
7.8Me-/5.2Me-(IWR)
Dynamic Range ≥75dB
Number of Output 4; Up to 10Mpixel/s per Output
NETD F2: ≤17mK
F4: ≤18mK
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058/RS046
Steady Power Consumption ≤6W@RS058
≤5W@RS046
Max Power Consumption ≤12W @ RS058
≤11W @ RS046
Power Supply RS058: 24V DC
RS046: 32V DC
Cooling Time ≤6min @ RS058
≤5min30s @ RS046
Weight ≤600g @ RS058
≤350g @ RS046
Dimension (mm) RS046: 122x46.3x82
RS058: 147x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C615M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
