MWIR MCT Infrared Detector 320x256 / 30μm for Fast Integration

I'm Online Chat Now

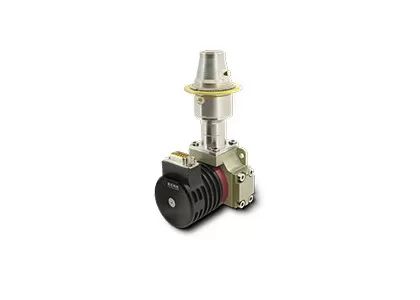

MWIR MCT Infrared Detector 320x256 / 30μm for Fast Integration

MWIR MCT Infrared Detector 320x256 / 30μm for Fast Integration
MWIR MCT Infrared Detector 320x256 / 30μm for Fast Integration

Large Image :  MWIR MCT Infrared Detector 320x256 / 30μm for Fast Integration

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C330M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Cryo Cooler: RS058/RS046H Resolution: 320x256/30μm
Size: 142x58.5x71mm Weight: ≤600g
NETD: ≤9mK (F2); ≤15mK (F4) Spectral Range: 3.7~4.8μm MW
High Light:

MCT Infrared Detector 320x256

,

Fast Integration MCT Infrared Detector

,

MWIR Integrated Dewar Cooler Assembly

Cooled Infrared Detector



MWIR MCT Infrared Detector 320x256 / 30μm for Fast Integration



Product Description



C330M MWIR MCT cooled infrared detector is specially designed by Global Sensor Technology (GST). It is with the most classical 320x256@30μm spec and is among the earliest products in GST product portfolio for nearly 10 years. Its wavelength, F number, mounting surface can be customized and multiple cryocoolers are available.



C330M MWIR cooled MCT detector is interchangeable with most mainstream products when configured with RS058 integrated stirling cooler. It can be used for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.



 Main Features



- Resolution: 320x256

- Pixel Pitch: 30μm

- High Sensitivity

- Compact Design

- Lightweight

- Low Power Consumption



Product Specifications



Model C330M MW
Material MCT
Resolution 320x256
Pixel Pitch 30μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 36Me-/12Me-
Dynamic Range ≥80dB
Number of Output 1 or 4; Up to 6.6Mpixel/s per Output
NETD F2: ≤9mK
F4: ≤15mK
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058/RS046H
Steady Power Consumption ≤6W @ RS058
≤6W @ RS046H
Max Power Consumption ≤12W @ RS058
≤11W @ RS046H
Power Supply RS058: 24V DC
RS046H: 32V DC
Cooling Time ≤6min @ RS058
≤5min30s @ RS046H
Weight ≤600g
Dimension (mm) 142x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C330M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

MWIR MCT Infrared Detector 320x256 / 30μm for Fast Integration 0



About Us


MWIR MCT Infrared Detector 320x256 / 30μm for Fast Integration 1


FAQs



1. What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3. What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening
