1280x1024 Uncooled LWIR Thermal Imaging Module For Surveillance Camera

I'm Online Chat Now

1280x1024 Uncooled LWIR Thermal Imaging Module For Surveillance Camera

1280x1024 Uncooled LWIR Thermal Imaging Module For Surveillance Camera
1280x1024 Uncooled LWIR Thermal Imaging Module For Surveillance Camera

Large Image :  1280x1024 Uncooled LWIR Thermal Imaging Module For Surveillance Camera

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG1212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024/12μm NETD: <30mK
Frame Rate: 25Hz Spectral Range: 8~14μm
Size: 56x56x40.2mm Weight: ≤220g
High Light:

1280x1024 Thermal Imaging Module

,

Surveillance Camera Uncooled Thermal Module

,

1280x1024 Uncooled Thermal Module

Thermal Module for Security and Surveillance



Uncooled LWIR Thermal Imaging Module Easy Integration in Surveillance Camera



Product Description

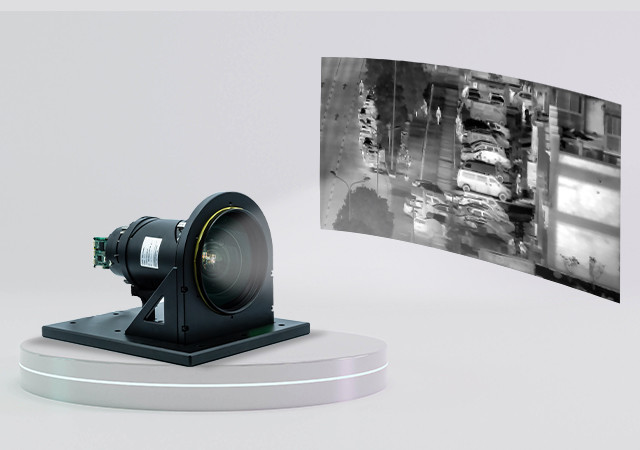

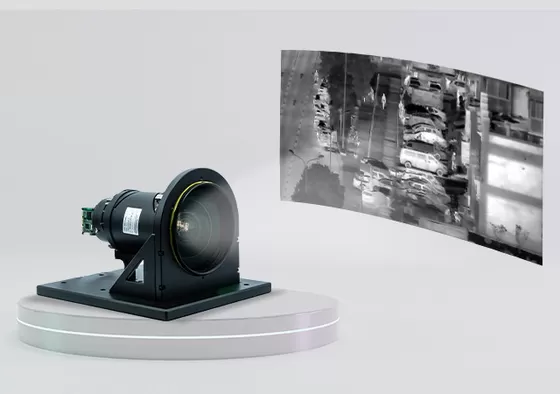

Released by Global Sensor Technology, the high definition PLUG1212 uncooled thermal module integrates a 30mm-180mm zoom lens and 1280x1024 uncooled LWIR infrared detector which ensure adjustable detection distance and high-resolution imaging.



Most of the thermal cores are equipped with fixed focal lenses which have fixed detection range and are applicable to limited scenes. The field of view of 30mm-180mm zoom lens covers ranges from 4.9°×3.9° to 28.7°×23.1°, and its detection range varies according to the demand, with farthest distance exceeding 7000 meters.



This PLUG1212 thermal imaging module which can be integrated into large security systems, such as security cameras, payloads, infrared panoramic system, etc.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Ultra Clear Image Quality & Details
- Easy Integration
- Strong Environmental Adaptability



Product Specifications



Model PLUG1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz
Start-up Time <25s
Analog Video /
Digital Video HDMI/RAW/YUV/BT1120
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 5±0.5V
Typical Power Consumption <2.0W
Physical Characteristics
Dimension (mm) 56x56x40.2
Weight ≤220g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 19mm/25mm



Industrial Applications



The PLUG1212 infrared imaging module is widely used in Security Monitoring industry

1280x1024 Uncooled LWIR Thermal Imaging Module For Surveillance Camera 0



Mission Range



1280x1024 Uncooled LWIR Thermal Imaging Module For Surveillance Camera 1



FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.



2. What is the advantage of infrared thermal imaging?

--- See through total darkness;

--- Identification under camouflage;

--- Long range detection;

--- Heat distribution detection;

--- Non-contact temperature measurement;

--- Occupation awareness



3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
