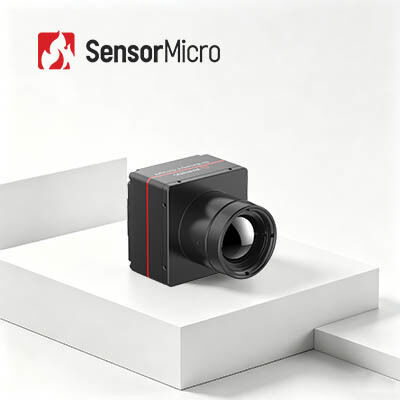

1280x1024 Resolution 12μm Pixel Size Shutterless Design Thermal Camera Module for High Definition Imaging

  • 1280x1024 Resolution 12μm Pixel Size Shutterless Design Thermal Camera Module for High Definition Imaging
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iSE1212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024/12μm NETD ≤30mK
Frame Rate 25Hz/30Hz/50Hz Spectral Range 8~14μm
Communication Interface TTL-232/USB Supply Voltage 2.7V~5.3V
Highlight

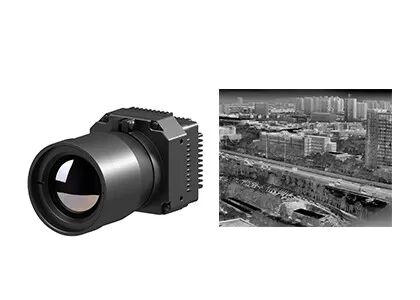

1280x1024 LWIR Thermal Camera Module

,

180mm Zoom Lens Thermal Camera Module

,

30mm Zoom Lens Thermal Imaging Module
Leave a Message
Product Description
1280x1024/12μm HD LWIR Thermal Camera Module Mega Pixel Resolution
Product Overview

The iSE1212 thermal camera core utilizes a 1280x1024/12μm infrared detector. With large array 1280×1024 resolution, professional hardware platform and advanced image algorithms, this high definition thermal imaging module guarantees wider field of view and enhanced image detail capture.

Featuring a shutterless design, it effectively eliminates image stuttering and noise issues commonly encountered during observation. The iSE1212 supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, electronic zoom, and other features. With multiple video interfaces and lens compatibility for easy integration, it delivers superior imaging performance for high-end infrared applications.

Main Features
  • High-Definition Imaging with Smooth Visuals - Delivers megapixel thermal imaging with smooth, lag-free performance. Wider field of view, larger angle coverage, longer detection range, and enhanced detail capture.
  • Shutterless Operation for Silent Performance - No shutter calibration required during use, eliminating image stuttering common in traditional designs. Silent operation helps avoid detection by targets.
  • Feature-Rich and Integration-Friendly - Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with wide range of optical lenses and extended components for easy secondary development and flexible system integration.
Product Specifications
Specification Details
Model iSE1212
IR Detectors Indicators
Sensitive Material VOx
Resolution 1280×1024
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Effective Pixels 1280×1024
Digital Frame Rate 25Hz/30Hz/50Hz
Start-up Time 7s
Digital Video YUV420/YUV422/RGB888/RAW
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Shutterless Supported
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Image Direction Horizontal/Vertical/Diagonal
Digital Zoom 1x/2x/4x/8x
Image Brightness Auto/Manual
Image Contrast Auto/Manual
Compensation Mode Manual
Reticle Supported
System Function
Sleep Mode Supported
Menu Setting Customizable
Menu Language Chinese / English
Offset calibration Supported
Keypads ≥4 (Button functions customizable)
OLED Driving Support I2C, 16bit/24bit Parallel Port, datavalid and other drive screen signals. Direct Drive Micro OLED MDP03/Micro OLED MDP02/OLiGHTEK SVGA060/Sony ECX334A. Supports MIPI display signals and can directly drive the IBOE VX039FHP-NH4 screen.
PC Software Computer Software - Module Control & Video Display
Electrical
Standard External Interface 50pin: BP040SB-50-0114-B-R0
Communication Interface TTL-232/USB
Digital Video Interface DVP16/BT.1120/USB3.0/MIPI-DSI-4LANE
Extension Components USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Supply Voltage 2.7V~5.3V
Typical Power Consumption 1.2W@25Hz@23±3℃
Mechanical/Lens
Bare Core Size(mm) 38×39×28 | 68×69×30.2
Bare Core Weight(g) 65±3 | 88.5±3
Optical Lens Fixed Focus Athermal: 14mm/19mm/25mm/35mm | Fixed Focus Athermal: 50mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Zoom: 15~100mm/25~75mm/28~90mm/30~180mm/25~225mm/30~300mm
Shutter Components Optional
Protection Level IP67 (Front Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35g, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 500g@1ms
Certification ROHS2.0/REACH
Industrial Applications

The iSE1212 thermal imaging module is widely used in many industries, including:

  • Industrial Vision
  • Firefighting and Rescue
  • Security Surveillance
  • Outdoor Observation
  • Machine Vision
  • Consumer Electronics
Frequently Asked Questions
What is infrared thermal imaging?

Infrared thermal imaging is a method that utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.

What is the advantage of infrared thermal imaging?
  • See through total darkness
  • Identification under camouflage
  • Long range detection
  • Heat distribution detection
  • Non-contact temperature measurement
  • Occupation awareness
What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
