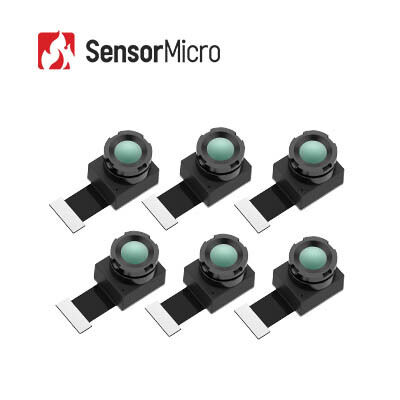

iLC212 Miniature Uncooled LWIR 256x192 12μm Thermal Camera Core for Surveillance

I'm Online Chat Now

iLC212 Miniature Uncooled LWIR 256x192 12μm Thermal Camera Core for Surveillance

iLC212 Miniature Uncooled LWIR 256x192 12μm Thermal Camera Core for Surveillance
iLC212 Miniature Uncooled LWIR 256x192 12μm Thermal Camera Core for Surveillance
video play

Large Image :  iLC212 Miniature Uncooled LWIR 256x192 12μm Thermal Camera Core for Surveillance

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: iLC212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 256x192 Power Consumption: 700mW
Spectral Range: 8~14μm Pixel Pitch: 12μm
NETD: ≤65mK Frame Rate: 25Hz/30Hz
High Light:

Miniature Uncooled LWIR Thermal Camera Core

,

Surveillance LWIR Thermal Camera Core

,

256x192 Uncooled LWIR Camera Core

iLC212 Thermal Security Camera Module


iLC212 Miniature Uncooled LWIR 256x192 / 12μm Thermal CameraCore for Security and Surveillance


Product Description


iLC212 uncooled IR imaging module integrates the 256x192 / 12μm focal plane array wafer level package (WLP) infrared detector and can capture long-wave infrared (LWIR) spectrum that ranges from 8 to 14μm.

Oriented for fully optimized SWaP-C, the iLC212 thermal camera module is specially designed for those customers who has strict requirements about size, weight and cost in the area of security and surveillance. Due to its miniature size, light weight and very low price, the iLC212 thermal core greatly meets the customers' low price demands, shorten their developement time and save costs for them.

Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.


Main Features


- Fully optimized SWaP-C application
- Suitable for various security thermal cameras
- A wide range of thermal imaging applications
- Low Power Consumption


Product Specifications



ModeliLC212
IR Detector Performance
MaterialUncooled Vanadium Oxide
Resolution256×192
Pixel Size12μm
Spectral Response8μm ~14μm
NETD≤65mK@F1.0@25℃@50Hz
Image Processing
Digital VideoRAW/YUV/BT656; Support USB2.0 Video Transmission; Temperature Measurement Support Parameter Line
Digital Frame Rate25Hz/30Hz
Image DisplayBlack-hot/white-hot/Pseudo-color
Image AlgorithmNonuniformity Correction (NUC)
3D Image Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
EE Enhancement
Start-up Time≤3s
Temperature Measurement
Operating Temperature Range-10℃~+50℃
Temperature Measurement Range-20℃~+150℃, Support Temperature Measurement Range Expansion and Customization
Temperature Measurement Accuracy±3℃/±3% (take the larger value) @23℃±5℃; the Temperature Measurement Distance is 1.5m
Regional Temperature MeasurementSupport Any Area Temperature Measurement, Output Area Maximum Value, Minimum Value and Average Value
SDKWindows / Linux Version, Achieve Video Stream Analysis and Gray to Temperature Conversion
Electrical Interface
External Interface30pin_HRS Connector
Power Input
Digital Video
RS232-TTL/USB2.0
GPIO etc.
CommunicationRS232-TTL/USB2.0
Expansion ComponentVPC Board
PC Software
ICC SoftwareModule Control and Video Display
Power System
Power SupplyDC 3.3V±0.1V
Power DissipationSteady State: 0.70W/3.3V @23±3℃
Physical Property
ConnectorsExternal Connector Model: DF40C-30DP-0.4V (51), (HRS-Male)
Mating Connector Model: DF40C (2.0)-30DS-0.4V (51), (HRS-Female)
Size21mm×21mm×12.8mm (including 3.2mm lens)
Weight8.9g±0.5g (including 3.2mm lens)
Environmental Adaptability
Operation Temperature-40℃~+70℃
Storage Temperature-45℃~+85℃
Humidity5%~95%, non-condensing
Impact & Vibration ResistanceImpact: half sine wave, 40g/11ms, 3-axis, 6-direction
Vibration: 5.35grms, 3 axis
CertificationROHS2.0/REACH
Lens
Optional Lens3.2mm/F1.1, HFOV: 55.6±2.8°; Coating: AR



Industrial Applications


The iLC212 thermal imaging module is applied to the field of security and monitoring, It is suitable to be integrated into the Hidden Camera, Digital Camera, Dome Camera, Box Camera etc.

iLC212 Miniature Uncooled LWIR 256x192 12μm Thermal Camera Core for Surveillance 0


Exhibitions


iLC212 Miniature Uncooled LWIR 256x192 12μm Thermal Camera Core for Surveillance 1


FAQs


1. In which industries can the infrared detectors/thermal camera cores be used?

GST infrared detectors / thermal camera cores are widely used in many industries such as:
- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
