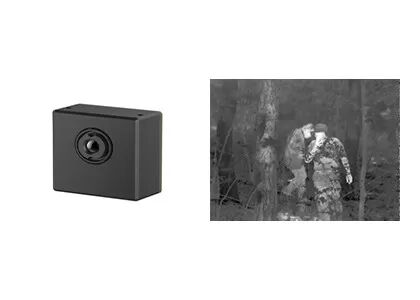

Uncooled Thermal Imaging Module 256x192 / 12μm for Security Camera

I'm Online Chat Now

Uncooled Thermal Imaging Module 256x192 / 12μm for Security Camera

Uncooled Thermal Imaging Module 256x192 / 12μm for Security Camera
Uncooled Thermal Imaging Module 256x192 / 12μm for Security Camera

Large Image :  Uncooled Thermal Imaging Module 256x192 / 12μm for Security Camera

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: iLC212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 256x192 Power Consumption: 700mW
Spectral Range: 8~14μm Pixel Pitch: 12μm
NETD: ≤65mK Frame Rate: 25Hz/30Hz
High Light:

Uncooled Thermal Imaging Module

,

Thermal Imaging Module 256x192

iLC212 Thermal Imaging Module


Uncooled 256x192 / 12μm Thermal Imaging Module for Security Camera


Product Description


As a representative of low cost thermal camera core, iLC212 uncooled IR imaging module is very suitable for customers who has strict requirement of small size, light weight and very low price in the field of security and monitoring.

iLC212 includes an exceptionally small size 256x192 / 12μm wafer level package (WLP) infrared detector that captures long-wave infrared (LWIR) spectrum that ranges from 8 to 14μm.

Due to its fully optimized SWaP-C, the iLC212 thermal camera module can be integrated into security cameras with wide angle monitoring and close range temperature measurement.


Main Features


- Fully Optimized SWaP-C applications
- Suitable for various infrared products
- A wide range of thermal imaging applications
- Low Power Consumption


Product Specifications



ModeliLC212
IR Detector Performance
MaterialUncooled Vanadium Oxide
Resolution256×192
Pixel Size12μm
Spectral Response8μm ~14μm
NETD≤65mK@F1.0@25℃@50Hz
Image Processing
Digital VideoRAW/YUV/BT656; Support USB2.0 Video Transmission; Temperature Measurement Support Parameter Line
Digital Frame Rate25Hz/30Hz
Image DisplayBlack-hot/white-hot/Pseudo-color
Image AlgorithmNonuniformity Correction (NUC)
3D Image Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
EE Enhancement
Start-up Time≤3s
Temperature Measurement
Operating Temperature Range-10℃~+50℃
Temperature Measurement Range-20℃~+150℃, Support Temperature Measurement Range Expansion and Customization
Temperature Measurement Accuracy±3℃/±3% (take the larger value) @23℃±5℃; the Temperature Measurement Distance is 1.5m
Regional Temperature MeasurementSupport Any Area Temperature Measurement, Output Area Maximum Value, Minimum Value and Average Value
SDKWindows / Linux Version, Achieve Video Stream Analysis and Gray to Temperature Conversion
Electrical interface
External interface30pin_HRS Connector
Power Input
Digital Video
RS232-TTL/USB2.0
GPIO etc.
CommunicationRS232-TTL/USB2.0
Expansion ComponentVPC Board
PC Software
ICC SoftwareModule Control and Video Display
Power System
Power SupplyDC 3.3V±0.1V
Power ConsumptionSteady State: 0.70W/3.3V @23±3℃
Physical Property
ConnectorsExternal Connector Model: DF40C-30DP-0.4V (51), (HRS-Male)
Mating Connector Model: DF40C (2.0)-30DS-0.4V (51), (HRS-Female)
Size21mm×21mm×12.8mm (including 3.2mm lens)
Weight8.9g±0.5g (including 3.2mm lens)
Environmental Adaptability
Operation Temperature-40℃~+70℃
Storage Temperature-45℃~+85℃
Humidity5%~95%, non-condensing
Impact & Vibration ResistanceImpact: half sine wave, 40g/11ms, 3-axis, 6-direction
Vibration: 5.35grms, 3 axis
CertificationROHS2.0/REACH
Lens
Optional Lens3.2mm/F1.1, HFOV: 55.6±2.8°; Coating: AR



Industrial Applications


The iLC212 thermal imaging module is applied to the field of security and monitoring, It is suitable to be integrated into the Hidden Camera, Digital Camera, Dome Camera, Box Camera etc.
