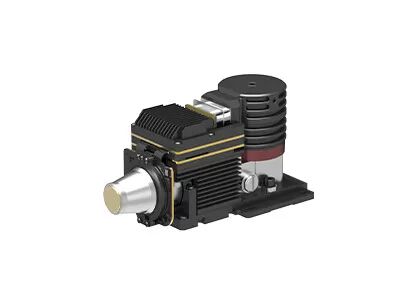

GAVIN330 MWIR Cooled Thermal Imager Module High Reliability 320x256 30μm

I'm Online Chat Now

GAVIN330 MWIR Cooled Thermal Imager Module High Reliability 320x256 30μm

GAVIN330 MWIR Cooled Thermal Imager Module High Reliability 320x256 30μm
GAVIN330 MWIR Cooled Thermal Imager Module High Reliability 320x256 30μm

Large Image :  GAVIN330 MWIR Cooled Thermal Imager Module High Reliability 320x256 30μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAVIN330
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 320x256 / 30μm Material: MCT
NETD: ≤10mK Spectral Range: 3.7~4.8μm (MW)
Size: 150×67×80mm Weight: ≤900g
High Light:

MWIR Cooled Thermal Imager

,

GAVIN330 Cooled Thermal Imager

,

320x256 Thermal Imager Module

Brief Description



GAVIN330 High Reliability Cooled HgCdTe 320x256 / 30μm MWIR Thermal Imaging Module



Product Description



GAVIN series is the standard cooled infrared module developed by Global Sensor Technology (GST). It is available with different resolution formats, different wave bands and also different continuous optical lens options.



GAVIN330 thermal imaging module is one of GAVIN series with 320x256 / 30μm MWIR cooled detector and RS058 cryocooler inside. It operates in the 3.7~4.8μm spectral range. With industrial standard cameralink interface, infrared camera or system integrator can design or integrate their own complete camera easily based on the GAVIN330 cooled infrared module.



Global Sensor Technology is committed to opening a new vision for the infrared thermal imaging industrial. We specialize in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules to provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.



Main Features



- High Quality Thermal Imaging

- High Sensitivity, NETD≤10mK

- Long Range Detection

- Easy Integration into the System

- DVP/Cameralink Interface, RAW/YUV Image Output

- Various Continuous Optical Zoom Lenses are Available



Product Specifications



Model GAVIN330
IR Detector Performance
Resolution 320x256
Pixel Pitch 30μm
Cryocooler RS058
Spectral Range 3.7μm~4.8μm MW
Cooling Time(20°C) ≤7min
NETD (20°C) ≤10mK
Image Processing
Frame Rate 50Hz/100Hz/200Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 150×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Continuous Zoom
30~240mm/F4
15~300mm/F4
21~420mm/F4
35~690mm/F4



Industrial Applications



The GAVIN330 cooled thermal camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
