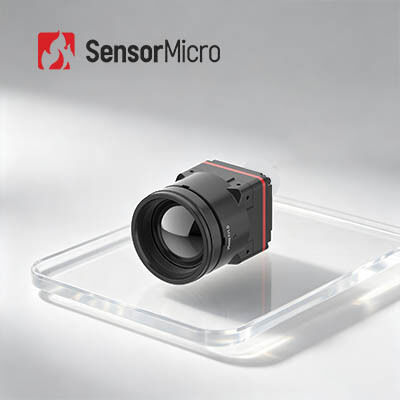

Uncooled FPA Thermal Camera Core with 1280×1024 Resolution and 8μm Pixel Size for Ultra-compact Integration

  • Uncooled FPA Thermal Camera Core with 1280×1024 Resolution and 8μm Pixel Size for Ultra-compact Integration
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iTL1208
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024/8μm NETD ≤30mK
Spectral Range 8~14μm Digital Frame Rate 25/30Hz
Start-up Time ≤6s Supply Voltage 4.5-5.5V
Highlight

FPA Thermal Imaging Core

,

Uncooled Thermal Imaging Core
Leave a Message
Product Description
Uncooled FPA Thermal Camera Core 1280×1024/8μm with Ultra-compact Integration
Product Overview

Featuring industry-first 8μm megapixel thermal imaging technology, the iTL1208 infrared camera core leads the innovation of miniaturized thermal detection systems. Equipped with the cutting-edge ApexCore 1280×1024 super infrared detector with exclusive 8μm pixel size, it achieves a perfect balance of ultra-high integration density and full megapixel resolution, outperforming conventional thermal camera cores in both precision and compactness.

Advanced built-in image enhancement algorithms optimize thermal image clarity and detail presentation, restoring rich temperature field information accurately. With revolutionary germanium-free chalcogenide optical design, ultra-low 1W power consumption, and standard MIPI CSI digital output, the iTL1208 combines technological breakthroughs with practical usability for next-generation thermal imaging device upgrading.

Main Features
  • 8μm Megapixel Breakthrough: World's first 8μm megapixel thermal camera core powered by the ApexCore 1280×1024/8μm super infrared detector, balancing high resolution with ultra-compact integration
  • Advanced SWaP Performance: Measures only 22.6×22.6×34.5 mm, weighs 35.7±2g (including 12mm lens), and consumes just 1W - breaking the size barrier for megapixel thermal imaging
  • Germanium-Free Optics & Fast Integration: Germanium-free chalcogenide optics with multiple lens options for diverse application requirements. MIPI CSI image output interface with RAW and YUV data output for simplified system integration
Product Specifications
Model iTL1208
IR Detectors Indicators Sensitive Material: VOx
Resolution: 1280×1024
Pixel Size: 8μm
Spectral Response: 8μm ~ 14μm
Typical NETD: ≤30mK
Image Processing Digital Frame Rate: 25/30Hz
Start-up Time: ≤6s
Digital Video: RAW/YUV
Image Algorithm: NUC/3DNR/DNS/DRC/EE
Image Display: 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Electrical Standard External Interface: 34Pin_Connector Interface: BP04SD-34-0065-R0
Communication Interface: TTL-232/I2C
Digital Video Interface: MIPI-CSI
Supply Voltage: 4.5-5.5V
Typical Power Consumption: 1W
Mechanical Size (including lens): Various configurations from 22.6×22.6×34.5mm to 22.6×22.6×50.9mm depending on lens
Weight (including lens): 35.7±2g to 110±5.5g depending on lens
Environmental Adaptability Operating Temperature: -40℃~+70℃
Storage Temperature: -45℃~+85℃
Humidity: 5%~95%, non-condensing
Vibration: 5.35grms, Random Vibration, 3-axis
Impact: Half Sine Wave, 40g/11ms, Impact Direction 3 Axis, 6 Direction
Certification ROHS2.0/REACH
Optical Lens Fixed Focus Athermal: 5/10/12/17/25/35mm
Industrial Applications
Forest Firefighting Power Maintenance Photovoltaic Inspection Security Monitoring Wearable Devices Portable Devices
Customized Services
  • Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
  • On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
  • Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
What is infrared thermal imaging?

Infrared thermal imaging is a method that utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.

What are the advantages of infrared thermal imaging?

- See through total darkness
- Identification under camouflage
- Long range detection
- Heat distribution detection
- Non-contact temperature measurement
- Occupation awareness

What are the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
