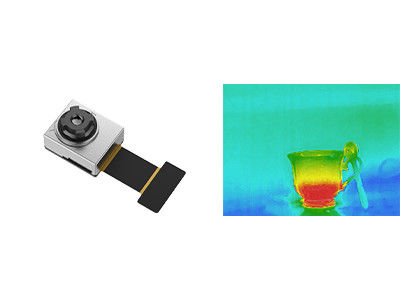

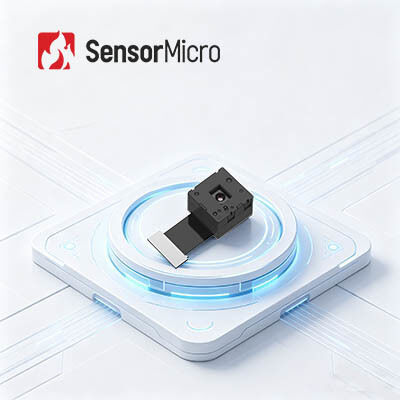

Miniature VOx FPA Thermal Imaging Camera Core 120x90 / 17μm

I'm Online Chat Now

Miniature VOx FPA Thermal Imaging Camera Core 120x90 / 17μm

Miniature VOx FPA Thermal Imaging Camera Core 120x90 / 17μm
Miniature VOx FPA Thermal Imaging Camera Core 120x90 / 17μm
video play

Large Image :  Miniature VOx FPA Thermal Imaging Camera Core 120x90 / 17μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: TIMO120
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Spectral Range: 8~14μm NETD: ≤60mK
Resolution: 120x90 Pixel Pitch: 17μm
Temperature Range: -20℃~+120℃ (Customizable) Size: 8.5x8.5x9.16mm
High Light:

Thermal Imaging Camera Core 120x90

,

FPA Thermal Imaging Camera Core

TIMO120 Thermal Camera Core



Miniature VOx FPA 120x90 / 17μm Thermal Imaging Camera Core Integrated in Infrared Cameras



Product Description



TIMO120 miniature infrared module integrates wafer-level optics, 120x90 / 17μm wafer level package (WLP) detector and basic image processing circuit to quickly obtain thermal images of the target area and heat distribution.



TIMO120 thermal imaging core is oriented for optimized size, weight, power, cost (SWaP-C) infrared imaging applications. Its super miniature structure and ultralow power consumption are convenient to be integrated into various smart devices, thermal imagers or mobile terminals with strict requirements on cost, size and weight.



Main Features



- Minimum WLP infrared module, dimension at 8.5x8.5x9.16mm
- DVP Interface, compatible with various embedded platforms
- Visible camera module equivalent, directly integration
- Complete SDK development kit
- Low power design for extend longer operating time
- Low cost for many kinds of intelligent applications



Product Specifications



Model TIMO-120
IR Detector Performance
Resolution 120x90
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD ≤60mK
Lens Type WLO
Focus Mode Fixed Zoom
HFOV 90°/50°
Depth of Field 10cm to Infinity
Frame Rate 1~30Hz (Customizable)
Temperature Measurement
Temperature Range -20°C ~ +120°C (Customizable)
Temperature Accuracy Customizable (Meet the Requirements of Body or Industrial Thermography)
Interface/Control
AVDD 3.6V±0.05V
VSK/VDET 4.7±0.05V
DVDD 1.8V±0.05V
Interface Digital Interface
Power Consumption 45mW (Typical Mode); 9mW (Low Power Mode)
Physical Characteristics
Dimension (mm) 12x10x5.48 (HFOV=90°); 8.5x8.5x9.16 (HFOV=50°) (The Specifications Shall Prevail)
Operation Temperature -20°C ~ +60°C
Storage Temperature -40°C ~ +85°C



Industrial Applications



The TIMO120 infrared thermal camera core is widely used in many areas, such as Thermography, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.



Miniature VOx FPA Thermal Imaging Camera Core 120x90 / 17μm 0



Global Sensor Technology Team



Miniature VOx FPA Thermal Imaging Camera Core 120x90 / 17μm 1



FAQs



1. How to choose proper infrared detector resolution?
It depends on the actual needs and applications of your products, and the price is also a factor that needs to be considered. If the image quality is not high, you can choose the infrared detector with low resolution, such as 120x90, 256x192, 400x300. If you need a very clear image for some special purposes, such as remote monitoring, you can choose a high resolution infrared detector of 1280x1024.



2. How to select right pseudo color for thermal imaging?
- The gray white is more suitable for the target with small temperature difference
- The red and blue is more suitable for the scene where the problem points need to be found.
- The iron red is the standard color palette of the power industry.
Note: no matter which palette you choose, the thermal temperature will not change at all.



3. How to choose a suitable infrared thermal camera lens?
- Standard lens can meet normal targets with appropriate distance
- For the telephoto lens, it’s suitable for targets that is relatively small and needs to be viewed from a long distance
- To see more detail of objects at close distance, wide angle lens is better.
- Macro lens is for seeing very tinny target with close distance, such as chip circuit

Contact Details
WUHAN GLOBAL SENSOR TECHNOLOGY CO., LTD.

Contact Person: Sales Manager

Tel: +8613125195785

Send your inquiry directly to us (0 / 3000)
