Firefighting Thermal Camera Module Uncooled LWIR Thermal Module 640x512 12μm

I'm Online Chat Now

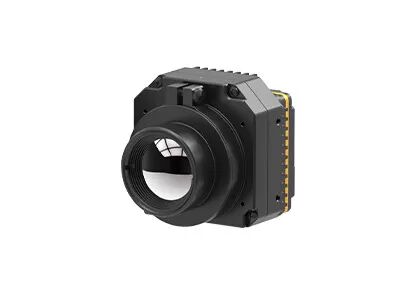

Firefighting Thermal Camera Module Uncooled LWIR Thermal Module 640x512 12μm

Firefighting Thermal Camera Module Uncooled LWIR Thermal Module 640x512 12μm
Firefighting Thermal Camera Module Uncooled LWIR Thermal Module 640x512 12μm

Large Image :  Firefighting Thermal Camera Module Uncooled LWIR Thermal Module 640x512 12μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG612
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Infrared Module Resolution: 640x512 / 12μm
Typical Power Consumption: <1.2W NETD: <30mK
Size: 44.5x44.5x36.6mm Weight: ≤85g
High Light:

85g Thermal Camera Module

,

640x512 LWIR Thermal Module

,

LWIR Thermal Camera Module

PLUG612 Infrared Detector Module



High Quality Uncooled LWIR 640x512 / 12μm Infrared Camera Module for Firefighting and Rescue



Product Description



The PLUG612 thermal camera core adopts the self-developed focal plane array VOx microbolometer uncooled infrared detector by Global Sensor Technology (GST).



It is one of the most classic and hot sale products of GST. By using the 640x512 / 12µm uncooled thermal sensor, the PLUG612 thermal imaging core provides clear image and superior performance.



PLUG612 thermal camera module has a wide range of applications, such as firefighting and rescue, drones, security and monitoring etc.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability



Product Specifications



Model PLUG612
IR Detector Performance
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 9Hz/25Hz/30Hz/50Hz/60Hz
Start-up Time <10s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Typical Power Consumption <1.2W
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight ≤85g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 13mm/19mm/24mm



Industrial Applications



The PLUG612 thermal camera module is widely used in Security and Monitoring, Outdoors, Law Enforcement Rescue, Firefighting and Rescue, ADAS, UAV Payloads etc.



Firefighting Thermal Camera Module Uncooled LWIR Thermal Module 640x512 12μm 0



Praises from Customers



Firefighting Thermal Camera Module Uncooled LWIR Thermal Module 640x512 12μm 1

FAQs



1. How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.



2. What's the advantage of uncooled vox microbolometer?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
