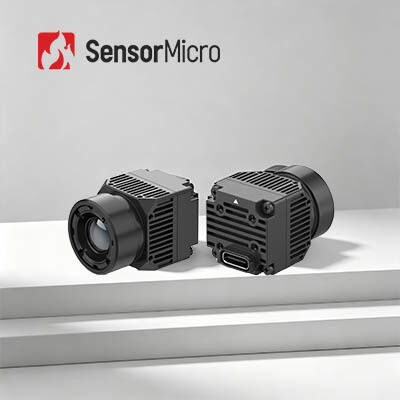

Uncooled 640×512/8μm Thermal Camera Core with ≤30mK NETD and 0.6W Power Consumption for Temperature Screening

  • Uncooled 640×512/8μm Thermal Camera Core with ≤30mK NETD and 0.6W Power Consumption for Temperature Screening
Place of Origin China
Brand Name SensorMicro
Certification RoHS2.0; Reach
Model Number iHA608W
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512/8μm NETD ≤30mK
Spectral Range 8~14μm Digital Frame Rate 25Hz
Supply Voltage 5V±0.5 Typical Power Consumption 0.6W
Highlight

400x300 Thermal Imaging System

,

Thermal Imaging System For Human Fever Screening
Leave a Message
Product Description
Uncooled 640*512/8μm Temperature Screening Thermal Camera Core
Product Overview
Designed for portable and embedded intelligent temperature measurement terminals, the iHA608W ultra-compact uncooled infrared camera core perfectly adapts to the miniaturization and intelligence development trend of medical devices. Equipped with 640*512/8μm high-sensitivity detector and lightweight medical imaging algorithms, it achieves ±0.5°C precise temperature measurement and fast thermal image refresh. The ultra-small size of 21*21*31.5mm and ultra-light weight of 25±2g make it easy to embed in handheld, wearable and portable medical devices. Supporting multi-system SDK development and universal wired interface docking, it is the ideal core component for mobile medical diagnosis and portable temperature screening terminals.
Main Features
Ultra-compact and lightweight design, fully adapted to portable and mini intelligent terminal equipment
Optimized lightweight algorithm, fast temperature data output and image refresh, suitable for mobile detection scenarios
Adaptable to handheld devices, wearable equipment and mobile screening terminals of various sizes
Multi-platform SDK supports intelligent algorithm secondary development and equipment intelligent upgrading
Product Specifications
Model iHA608W
IR Detectors Indicators
Sensitive Material VOx
Resolution 640*512
Pixel Size 8μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Digital Frame Rate 25Hz
Start-up Time ≤6s
Digital Video RAW/YUV/TMP
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display Medical/Pseudo Color
PC Software
Computer Software Module Control & Video Display
Temperature Measurement
Operating Temperature 10℃~+50℃
Temperature Measurement Range 32℃~+42℃
Temperature Measurement Accuracy ≤±0.5℃ (after 2-minute warm-up, ambient 23±3°C, target 32-42°C)
Measurement Distance 0.5m-5 m; supports multi-distance temperature measurement via SDK
SDK Support Windows/Android/Linux SDK, Realize Video Stream Analysis, Module Control, Comprehensive Array Temperature Measurement, Temperature Imaging, Temperature Window Setting, Multiple Integration
Electrical
Standard External Interface USB(TYPE-C)
Communication Interface USB
Digital Video Interface USB2.0
Supply Voltage 5V±0.5
Typical Power Consumption 0.6W
Optical Lens
Focus Length 4mm
Type of Lens Fixed Focus Athermal
F/# 1
FOV(H*V) 69.2°*55.4°
Mechanical
Size (including lens) 21mm*21mm*31.5mm (including 4mm lens)
Weight (including lens) 25g±2 (including 4mm lens)
Environmental Adaptability
Operating Temperature -10℃~+50℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction, 3 Axis, 6 Direction
ESD 6kV contact discharge; 8kV air discharge
Certification
Environmental Certification ROHS2.0/REACH
Industrial Applications
The iHA608W thermal camera is widely used in human body temperature measurement and elevated body temperature screening.
Our Product Line
High sensitivity and excellent performance
World-leading technology in infrared industry
Various infrared detectors available - both uncooled and cooled IR detectors in different formats and pixel sizes
Volume production to ensure fast delivery - three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
What are the advantages of uncooled infrared detectors?
Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.
What are the key considerations on an infrared detector / thermal module for your application?
  • The detector resolution
  • The pixel size
  • The NETD
  • The image quality
  • The lens options
  • The power consumption
  • The size and weight
  • The mechanical & electrical interface
  • The budget
