VOx LWIR Fever Screening Thermal Camera Core Uncooled 400x300 17μm

I'm Online Chat Now

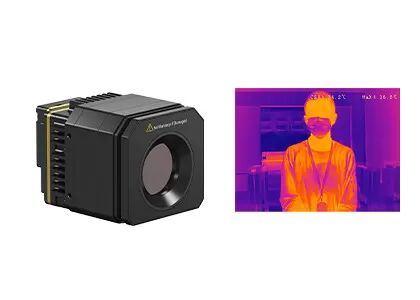

VOx LWIR Fever Screening Thermal Camera Core Uncooled 400x300 17μm

VOx LWIR Fever Screening Thermal Camera Core Uncooled 400x300 17μm
VOx LWIR Fever Screening Thermal Camera Core Uncooled 400x300 17μm

Large Image :  VOx LWIR Fever Screening Thermal Camera Core Uncooled 400x300 17μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: iHA417
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 400x300 / 17μm NETD: <30mK
Spectral Range: 8~14μm LW Size: 44.5x42.5x58.9mm
High Light:

400x300 Thermal Camera Core

,

VOx Thermal Camera Core

Fever Screening Thermal Camera



400x300 / 17μm Uncooled VOx LWIR Fever Screening Thermal Camera Core Widely Used for COVID-19



Product Description



Since the outbreak of corona virus, it is necessary to screen out people with fever sepecially in places with high volumes of people. Measurements like this should be fast, uncomplicated and preferably contactless – more or less when passing by.



iHA417 fever screening thermal camera is a hot sale product in the fight against COVID-19. Compared with traditional point gun, thermal scanner and ear temperature guns, the infrared thermal imaging screening system is faster, more accurate and without human contact



It consists of 400×300 / 17μm infrared detector, 7mm infrared optical lens and a specialized SDK for human body temperature measurement.



Global Sensor Technology is a supplier of infrared detectors sensors and OEM thermal camera cores. We have more than 10 years of experience in the infrared thermal imaging industries. We have professional after-sales service team to provide customers with professional reply. For any questions or problems, please contact us at any time, we will be in the first time for you to answer.



Main Features


- NETD<30mk, High Sensitivity
- Easy to Integrate
- Non-contact Design
- Field of View: 37.2°×28.3°
- Temperature Difference: ±0.5℃
- Temperature Measurement Distance: Optimal 5 Meters



Product Specifications





Model iHA417
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mK
Image Processing
Frame Rate 25Hz
Start-up Time <10s
Extension Component USB Video
Dimming Mode Linear/Histogram/Mixed
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface TYPE-C
Communication Mode USB
Supply Voltage 5±0.5V
Typical Power Consumption <1.5W
Temperature Measurement
Operating Temperature Range 16°C ~ 32°C
Temperature Range 20°C ~ 50°C
Temperature Accuracy ≤±0.5°C (No Wind Indoors, 32°C~42°C Target)
SDK ARM/Windows SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x42.5x58.9 (PLUG417S+7mm Lens)
Weight PLUG417S+7mm Lens≤135g
Environmental Adaptation
Operation Temperature -10°C ~ +50°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7mm
Certification
Certification Standards ROHS/REACH



Industrial Applications



The iHA417 thermal camera is widely used in human body temperature measurement and elevated body temperature screening.



VOx LWIR Fever Screening Thermal Camera Core Uncooled 400x300 17μm 0



About Global Sensor Technology



VOx LWIR Fever Screening Thermal Camera Core Uncooled 400x300 17μm 1



FAQs



1. In which industries can the infrared detectors/thermal camera cores be used?



GST infrared detectors / thermal camera cores are widely used in many industries such as:

- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention

- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety

- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue

- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation

- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol

- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles

- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots

- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
