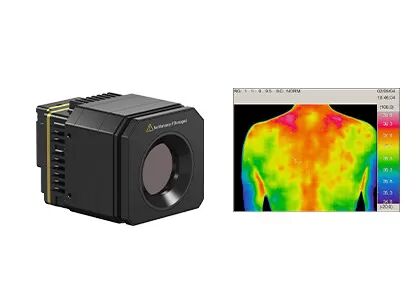

400x300 17μm Thermal Camera Core Thermal Imaging Fever Screening System

I'm Online Chat Now

400x300 17μm Thermal Camera Core Thermal Imaging Fever Screening System

400x300 17μm Thermal Camera Core Thermal Imaging Fever Screening System
400x300 17μm Thermal Camera Core Thermal Imaging Fever Screening System

Large Image :  400x300 17μm Thermal Camera Core Thermal Imaging Fever Screening System

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: iHA417
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 400x300/17μm NETD: <50mK
Spectral Range: 8~14μm Size: 44.5x42.5x58.9mm
High Light:

Thermal Camera Core 400x300

,

50mK Thermal Camera Core

,

400x300 Thermal Imaging Fever Screening System

iHA417 Uncooled Thermal Module



400x300 / 17μm Uncooled VOx LWIR Fever Screening Thermal Camera for Medical Diagnosis



Product Description



iHA417 fever screening thermal camera is a hot sale product in the fight against COVID-19. It enables a wide range of applications for the rapid non contact measurement and safe preliminary fever screening. It consists of 400×300 / 17μm infrared detector, 7mm infrared optical lens and a specialized SDK for human body temperature measurement.



Now, iHA417 thermal camera has already been implemented as a means of detecting people with fever-like symptoms in high-traffic areas such as hospital entrances, shopping centres and office buildings, and potentially mass-attendance sporting events when they resume.



Main Features


- NETD<30mk, High Sensitivity
- Easy to Integrate
- Non-contact Design
- Field of View: 37.2°×28.3°
- Temperature Difference: ±0.5℃
- Temperature Measurement Distance: Optimal 5 Meters



Product Specifications



Model iHA417
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mK
Image Processing
Frame Rate 25Hz
Start-up Time <10s
Extension Component USB Video
Dimming Mode Linear/Histogram/Mixed
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface TYPE-C
Communication Mode USB
Supply Voltage 5±0.5V
Typical Power Consumption <1.5W
Temperature Measurement
Operating Temperature Range 16°C ~ 32°C
Temperature Range 20°C ~ 50°C
Temperature Accuracy ≤±0.5°C (No Wind Indoors, 32°C~42°C Target)
SDK ARM/Windows SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x42.5x58.9 (PLUG417S+7mm Lens)
Weight PLUG417S+7mm Lens≤135g
Environmental Adaptation
Operation Temperature -10°C ~ +50°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7mm
Certification
Certification Standards ROHS/REACH



Industrial Applications



The iHA417 thermal camera is widely used in human body temperature measurement and elevated body temperature screening.



400x300 17μm Thermal Camera Core Thermal Imaging Fever Screening System 0



Our Advantages



400x300 17μm Thermal Camera Core Thermal Imaging Fever Screening System 1



FAQs



1. What is infrared thermal imaging?

In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.



2. How do infrared detectors work?

Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.



3. What are the advantages of cooled infrared detectors?

The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
