Uncooled Thermal Camera Core with 256×192 Resolution and 12μm Pixel Pitch for -20℃~+550℃ Temperature Measurement
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | Mini212G2 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 256×192 | Pixel Pitch | 12μm |
|---|---|---|---|
| Temperature Range | -20℃~+550℃ | Power Consumption | 330mW |
| Frame Rate | Thermography: 25Hz, Imaging: 50Hz | Analog Video Interface | CVBS(PAL/NTSC) |
| Highlight | 120x90 Thermal Camera Core,LC160 Uncooled Camera Core,RoHS Thermal Camera Core |
||
Product Description

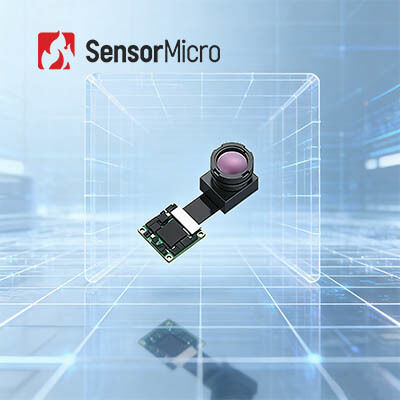

Uncooled Thermal Camera Core 256×192/12μm for Temperature Measurement
Product Overview
This compact infrared module integrates a wafer-level packaging 256×192/12μm uncooled infrared detector. With SDK and USB interface, the Mini212G2 uncooled thermal module is designed for easy integration and secondary development. It features a temperature measurement range from -20℃ to +550℃ with accuracy of ±2℃ or ±2%.
Main Features
- Miniature Module with Direct Thermal Imaging Output
- Equipped with self-developed 256×192/12μm wafer-level infrared detector
- Ultra-compact design: 17×17mm (PCBA) size, weighing only 4g
- Integrated ISP processing board and advanced image algorithms
- Precise Detection, Flexible Configuration
- High-precision temperature measurement with ±2℃ accuracy
- Supports spot, area, and full-frame measurement
- Multiple field-of-view lens options available
- Rich Interfaces for Easy Integration
- USB2.0 / MIPI / DVP / BT.656 / LVDS digital video output interfaces
- Fully compatible with industry-standard interfaces
Product Specifications
| Model | Mini212G2 |
|---|---|
| Resolution | 256×192 |
| Pixel Size | 12μm |
| Spectral Response | 8~14μm |
| NETD | ≤50mK |
| Output Data | 14bit Raw |
| Frame Rate | Thermography: 25Hz, Imaging: 50Hz |
| Focus Mode | Focus Free |
| Lens (HFOV/FL) | 17.5°/10mm | 25°/7mm | 56°/3.2mm | 90°/2.1mm |
| Weight (g) | 7.1 | 6.4 | 4 | 6.8 |
| PCBA Size (mm) | 17×17 |
| Digital Video Interface | USB2.0 / MIPI / DVP / BT.656 / LVDS |
| Analog Video Interface | CVBS (PAL/NTSC) |
| Operating Voltage | 3.3V±0.1V |
| Typical Power Consumption | 330mW |
| Temperature Measurement Range | -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃) |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Operating Temperature | -40℃~+70℃ |
| Humidity | 5%~85% |
| Storage Temperature | -45℃~+85℃ |
| Certification | RoHS 2.0 / Reach |
Industrial Applications
This product is designed for applications in AIoT, Machine Vision, Industrial Vision, Security Monitoring, and Night Observation:
- AIoT: Integration into compact AIoT devices including smart home appliances, wearable devices, and intelligent environmental monitors
- Industrial Vision: Real-time monitoring of industrial equipment, laser processing and welding scenarios, semiconductor detection
- Security Monitoring: Detection of illegal intruders and real-time alarm triggering
