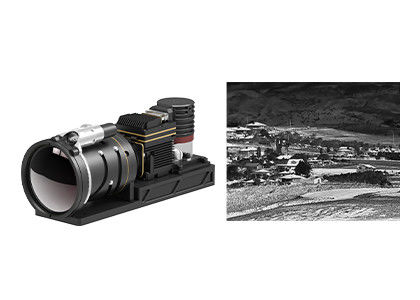

GAVIN615A Cooled Camera Core



High Sensitivity 640x512 / 15μm MCT MWIR Cooled Camera Module for Long Range Security and Surveillance



Product Description



GAVIN series is the standard cooled infrared module developed by Global Sensor Technology (GST). It is available with different resolution formats, different wave bands and also different continuous optical lens options. GAVIN615A is one of GAVIN series cooled thermal imaging module with 640x512 / 15μm MWIR cooled detector and RS058 cryocooler inside.



The NETD of GAVIN615A is less than 15mK. The high sensitivity ensures detection or recognition for very tiny infrared radiation difference at very long distance. Equipped with continuous zoom lenses such as 30~240mm, 15~300mm 21~420mm, 35~690mm etc, it is ideal choice for system integration in security and surveillance.



As a leading thermal imaging module manufacturer, Global Sensor Technology provides customers with a wide variety of mature integration solutions. By using GST infrared camera modules, it is convenient for them to conduct secondary development and reduce their time of independent research and development.



Main Features



- Meet the Needs of Long Range Detection

- High Sensitivity, NETD≤15mK

- High Frame Rate

- High Quality Thermal Imaging

- Easy Integration into the System



Product Specifications



Model GAVIN615A
IR Detector Performance
Resolution 640x512
Pixel Pitch 15μm
Cryocooler RS058
Spectral Range 3.7μm~4.8μm MW
Cooling Time (20°C) ≤7min
NETD (20°C) ≤15mK
Image Processing
Frame Rate 50Hz/100Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 155×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Continuous Zoom
30~240mm/F4
15~300mm/F4
21~420mm/F4
35~690mm/F4



Industrial Applications



The GAVIN615A thermal infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
