MCT MWIR Cooled Thermal Module 15μm 640x512 RS046 Cryocooler

I'm Online Chat Now

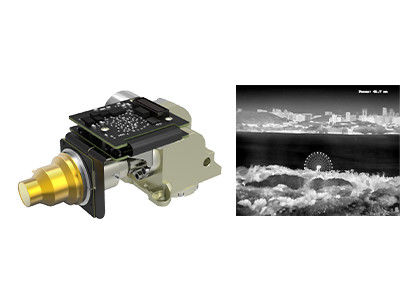

MCT MWIR Cooled Thermal Module 15μm 640x512 RS046 Cryocooler

MCT MWIR Cooled Thermal Module 15μm 640x512 RS046 Cryocooler
MCT MWIR Cooled Thermal Module 15μm 640x512 RS046 Cryocooler

Large Image :  MCT MWIR Cooled Thermal Module 15μm 640x512 RS046 Cryocooler

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: EYAS615B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 15μm NETD: ≤18mK
Spectral Range: 3.7~4.8μm Size: 122x88x59mm
Weight: ≤400g Frame Rate: 1~50Hz Adjustable
High Light:

MWIR Cooled Thermal Module

,

640x512 Cooled Thermal Module

,

RS046 MWIR Thermal Module

EYAS615B Infrared Camera Core by GST Infrared



Cooled AD Thermal Module with 640x512 / 15μm MCT MWIR Cooled Infrared Detector, RS046 Cryocooler



Product Description



EYAS series cooled AD modules have the pre-amplifier function to convert the analog signal from cooled IR detectors into a digital video stream output. It is available with different resolution formats and different wave bands. EYAS615B is a member of EYAS family with 640x512@15μm MWIR infrared detector and RS046 cryocooler integrated.



With EYAS series cooled AD module, it is easy for OEM customers to carry out fast acceptance test on GST detectors, start rapid secondary development and shorten their development period of modules and complete products based on cooled infrared detectors.



Global Sensor Technology is an infrared detector supplier and OEM infrared thermal core manufacturer which provides customers with various mature and effective thermal imaging solutions.



Main Features



- Easy to Develop & Integrate

- Cameralink Interface Output 16bit Raw Data, Serial Port Control

- Integrated Structure, Dimensions are Consistent with Detector

- 5V Single-supply

- Capable of Capturing High Speed Moving Target



Product Specifications



Model EYAS615B
IR Detector Performance
Resolution 640x512
Pixel Pitch 15μm
Cryocooler RS046
Spectral Range 3.7μm~4.8μm MW
Cooling Time (25°C) ≤5.5min
Optimal NETD (20°C) ≤18mK
Working Mode
Frame Rate 1~50Hz Adjustable
Working Mode Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Electrical Specification
Standard External Interface QSH 60pin
Digital Video Cameralink: Output 16bit Raw Data
External Sync CC1: INT/Frame External Sync; CC2: MC External Sync
Communication Cameralink Serial Port: TFG+/-, TC+/-; 9600bps
Power Supply 1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 12V
Stable Power Consumption 8W
Dimension (mm) 122×88×59
Weight ≤400g
Working Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each



Industrial Applications



The EYAS615B thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



MCT MWIR Cooled Thermal Module 15μm 640x512 RS046 Cryocooler 0



Our Advantages



MCT MWIR Cooled Thermal Module 15μm 640x512 RS046 Cryocooler 1

FAQs



1. What is infrared thermography?

Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?

The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3. What are the advantages of infrared thermography?

For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.

For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
