High Sensitivity Thermal Camera Module 320x256 / 30μm MCT MWIR Cooled

I'm Online Chat Now

High Sensitivity Thermal Camera Module 320x256 / 30μm MCT MWIR Cooled

High Sensitivity Thermal Camera Module 320x256 / 30μm MCT MWIR Cooled
High Sensitivity Thermal Camera Module 320x256 / 30μm MCT MWIR Cooled

Large Image :  High Sensitivity Thermal Camera Module 320x256 / 30μm MCT MWIR Cooled

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: EYAS330
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 320x256 / 30μm Frame Rate: 1~200Hz Adjustable
Size: 142x58.5x71mm Weight: ≤680g
NETD: ≤9mK Spectral Range: 3.7~4.8μm
High Light:

Thermal Camera Module 320x256

,

680g Thermal Camera Module

,

9mK MWIR Camera Module

EYAS330 Cooled AD Module



High Sensitivity 320x256 / 30μm MCT MWIR Cooled Infrared Module with Proximity Board



Product Description

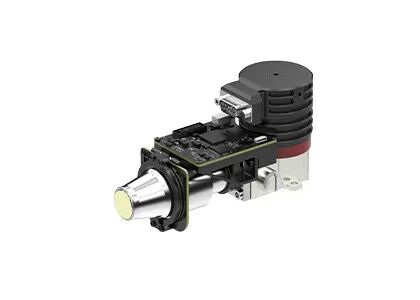

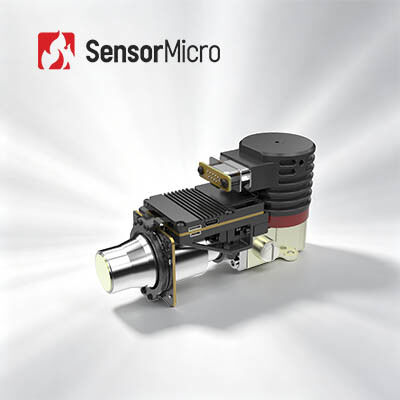

EYAS330 AD module is an analog-digital cooled infrared module based on 320x256 formats 30μm pitch IR FPA. The typical NETD of EYAS330 is less than 9mK. The high sensitivity ensures detection or recognition for very tiny infrared radiation difference at very long distance.



This AD module includes a proximity board that provides the FPA timing, and the sensitive power supplies. In addition, the Camera Link interface outputs 16bit raw data which highly simplifies the integration of the detector to the system.



Therefore, EYAS330 module makes it easy for OEM customers to carry out fast acceptance test on GST C330M 320x256@30μm cooled infrared detector, start rapid secondary development and shorten their development period of cooled infrared modules or complete infrared thermal cameras or systems based on cooled infrared detectors.



Main Features



- Easy to Develop & Integrate

- Cameralink Interface Output 16bit Raw Data, Serial Port Control

- Integrated Structure, Dimensions are Consistent with Detector

- 5V Single-supply

- Capable of Capturing High Speed Moving Target



Product Specifications



Model EYAS330
IR Detector Performance
Resolution 320x256
Pixel Pitch 30μm
Cryocooler RS058
Spectral Range 3.7μm~4.8μm MW
Cooling Time (25°C) ≤6min
Optimal NETD (20°C) ≤9mK
Working Mode
Frame Rate 1~200Hz Adjustable
Working Mode Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Electrical Specification
Standard External Interface QSH 60pin
Digital Video Cameralink: Output 16bit Raw Data
External Sync CC1: INT/Frame External Sync; CC2: MC External Sync
Communication Cameralink Serial Port: TFG+/-, TC+/-; 9600bps
Power Supply 1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
Stable Power Consumption 7W
Dimension (mm) 142×58.5×71
Weight ≤680g
Working Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each



Industrial Applications



The EYAS330 thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
