WUHAN GLOBAL SENSOR TECHNOLOGY CO., LTD.
Home ProductsThermal Camera Core

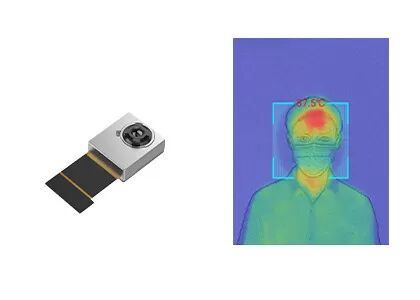

256x192 12μm Thermal Camera Module Core Uncooled LWIR for Thermography

I'm Online Chat Now

256x192 12μm Thermal Camera Module Core Uncooled LWIR for Thermography

256x192 12μm Thermal Camera Module Core Uncooled LWIR for Thermography
256x192 12μm Thermal Camera Module Core Uncooled LWIR for Thermography

Large Image :  256x192 12μm Thermal Camera Module Core Uncooled LWIR for Thermography

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: TIMO256
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 256x192 Power Consumption: 70mW
Spectral Range: 8~14μm Pixel Pitch: 12μm
NETD: ≤45mK Frame Rate: 1~30Hz (Customizable)
High Light:

256x192 Thermal Camera Module

,

Thermal Camera Module Core Uncooled

TIMO256 Thermal Imaging Module



Uncooled LWIR 256x192 / 12μm Thermal Camera Core for Thermography, AIoT Applications



Product Description



TIMO256 uncooled IR imaging module, also known as the uncooled thermal module, is radiometric-capable and has available infrared non-contact temperature measurement function. It includes an exceptionally small size 256x192 / 12μm wafer level package (WLP) infrared detector that captures long-wave infrared (LWIR) spectrum that ranges from 8 to 14μm.



Thanks to the WLP technology, the TIMO256 IR camera sensor module achieves super micro structure and light weight while offers greater sensitivity and superior image quality at an affordable price, enabling the customer to choose the most suitable type according to their own requirements.



As a leading thermal uncooled IR detector and thermal sensor module supplier, Global Sensor Technology (GST) has provided the customers with various mature and stable infrared thermal imaging solutions. It’s easier for the thermal imaging camera modules developed by GST to be integrated into more terminal products and greatly reduces the cost for customers.



Main Features



- Fully Optimized SWaP-C applications

- Suitable for various infrared products

- A wide range of thermal imaging applications

- Low Power Consumption



Product Specifications



Model TIMO-256
IR Detector Performance
Resolution 256x192
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD ≤45mK
Lens Type WLO
Focus Mode Fixed Zoom
HFOV 53°±1°
Depth of Field 10cm to Infinity
Frame Rate 1~30Hz (Customizable)
Temperature Measurement
Temperature Range -20°C ~ +120°C (Customizable)
Temperature Accuracy Customizable (Meet the Requirements of Body or Industrial Thermography)
Interface/Control
AVDD 3.6V±0.05V
VSK/VDET 5.0±0.05V
DVDD 1.8V±0.05V
Interface Digital Interface
Power Consumption 70mW
Physical Characteristics
Dimension (mm) 15x13x6.83 (The Specifications Shall Prevail)
Operation Temperature -20°C ~ +60°C
Storage Temperature -40°C ~ +85°C



Industrial Applications



The TIMO256 thermal imaging module is widely used in many areas, such as Thermography, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.

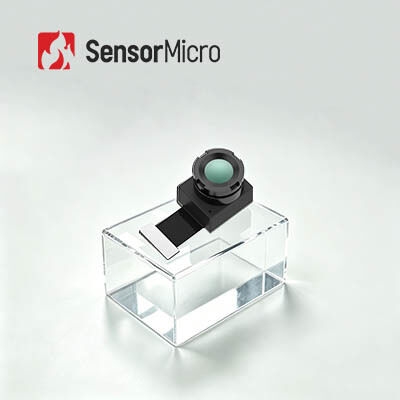

256x192 12μm Thermal Camera Module Core Uncooled LWIR for Thermography 0



Cooled Uncooled IR Detectors



256x192 12μm Thermal Camera Module Core Uncooled LWIR for Thermography 1





FAQs



1. What is infrared detector / thermal imaging sensor?

Infrared waves cannot be seen with the human eye. Infrared detector / thermal imaging sensor is an optical-electrical device to react to infrared radiation and thermal energy and convert it into electrical signal and then output visible thermal images.



2. What is WLP?

WLP refers to wafer level package. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared sensor. Together with metal package, ceramic package, they are the 3 main package formats of uncooled infrared detectors.



3. What's the advantage of WLP?

WLP IR detectors are specially designed to meet the miniaturization and low cost requirement in the application of infrared technology to consumer electronics market. Global Sensor Technology, with volume fabrication capability, is now offering a variety of WLP infrared module solutions to boost more new applications of emerging markets.
