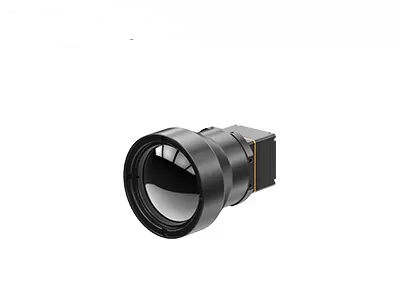

1280×1024 8μm 1W Thermal Imaging Module Thermal Camera Core for Security Monitoring

  • 1280×1024 8μm 1W Thermal Imaging Module Thermal Camera Core for Security Monitoring
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iTL1208R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280×1024 Power Consumption 1W
Spectral Range 8~14μm Pixel Pitch 8μm
NETD ≤30mK Frame Rate 25Hz/30Hz
Highlight

Compact LWIR Thermal Imaging Module

,

Thermal Imaging Module TWIN612

,

Low Power Consumption LWIR Module
Leave a Message
Product Description
Product Overview

Introducing the iTL1208R, the world's first 8-micron megapixel miniature infrared camera core powered by the ApexCore 1280×1024/8μm infrared detector. It combines megapixel thermal imaging capability and temperature measurement functionality while excelling in size, weight, and power efficiency.

The compact thermal camera core measures 22.6×22.6×34.5 mm and weighs 34.5 g with a 12 mm lens, delivering temperature measurement accuracy of ±2°C or ±2%. Ideal for outdoor inspection and industrial temperature measurement use cases calling for high-resolution thermal imaging and accurate temperature detection, it offers an integrated thermal solution for lightweight smart equipment.

Built with germanium-free chalcogenide optics and equipped with a MIPI CSI interface that outputs RAW and YUV data, it facilitates easy and fast integration into end systems.

Main Features
8μm Megapixel Breakthrough
  • World's first 8μm megapixel thermal camera core.
  • Powered by the ApexCore 1280×1024/8μm super infrared detector, balancing high resolution with ultra-compact integration.
At the Forefront of SWaP Performance
  • Measures only 22.6×22.6×34.5 mm, weighs 34.5 g (with a 12 mm lens), and consumes just 1 W.
  • Breaking the size barrier for megapixel thermal imaging.
Germanium-Free Optics, Fast Integration
  • Germanium-free chalcogenide optics with multiple lens options for diverse application requirements.
  • MIPI CSI image output interface with RAW and YUV data output for simplified system integration.
Product Specifications
Model iTL1208R
IR Detector Indicators
Sensitive Material VOx
Resolution 1280×1024
Pixel Size 8μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Digital Frame Rate 25/30Hz
Start-up Time ≤6s
Digital Video RAW/YUV/TMP
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display 10 Types (White Hot / Lava / Iron Red / Hot Iron / Medical / Arctic / Rainbow 1 / Rainbow 2 / Tint / Black Hot)
PC Software
ICC Software Module Control & Video Display
Electrical
Standard External Interface 34Pin_Connector Interface: BP04SD-34-0065-R0
Communication Interface TTL-232 / I2C
Digital Video Interface MIPI-CSI
Supply Voltage 4.5–5.5V
Typical Power Consumption 1W
Temperature Measurement
Operating Temperature -10℃ ~ +50℃
Temperature Measurement Range -20℃ ~ 150℃, 100℃ ~ 550℃; customization and expansion supported
Temperature Measurement Accuracy Greater of ±2℃ or ±2% @ 23℃ ±3℃
Partial Temperature Measurement Supports output of maximum, minimum, and average values of temperature measurement areas
Mechanical
Size (including lens) With 5mm lens: 22.6mm × 22.6mm × 50mm (lens outer diameter Φ37mm)
With 10mm lens: 22.6mm × 22.6mm × 45.3mm (lens outer diameter Φ33mm)
With 12mm lens: 22.6mm × 22.6mm × 34.5mm (lens outer diameter Φ26.6mm)
With 17mm lens: 22.6mm × 22.6mm × 35.4mm (lens outer diameter Φ27mm)
With 25mm lens: 22.6mm × 22.6mm × 44.2mm (lens outer diameter Φ33mm)
With 35mm lens: 22.6mm × 22.6mm × 50.9mm (lens outer diameter Φ43.2mm)
Weight (including lens) 85.5 ±4.5g (5mm lens)
70.5 ±3.6g (10mm lens)
35.7 ±2g (12mm lens)
40.7 ±2.1g (17mm lens)
71.0 ±3.6g (25mm lens)
110 ±5.5g (35mm lens)
Environmental Adaptability
Operating Temperature -40℃ ~ +70℃
Storage Temperature -45℃ ~ +85℃
Humidity 5% ~ 95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction, 3 Axis, 6 Direction
Certification ROHS2.0 / REACH
Optical Lens Fixed Focus Athermal: 5 / 10 / 12 / 17 / 25 / 35mm
Industrial Applications

The TWIN612/R thermal imaging module is applied to the fields of Thermography, Security Monitoring, Payloads, Robots, Intelligent Hardware, ADAS, and Firefighting & Rescue.

Standardized Service
  • Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
  • Development & Testing Assistance: Sample integrated testing, performance evaluation, and parameter verification made easy.
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
  • Remote Technical Support: 24/7 support — quick response and timely resolution for critical issues.
  • Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
1. Can animals be detected using thermal imaging?

Yes, thermal imaging can detect animals by capturing the difference in heat emitted by their bodies. It is commonly used in wildlife observation and tracking, as well as for locating animals in search and rescue operations.

2. Can thermal imaging be used in home inspections?

Yes, thermal imaging is commonly used in home inspections to identify problems such as insulation gaps, water leaks, electrical issues, and HVAC inefficiencies. It can help identify hidden flaws that may not be visible to the naked eye, allowing for targeted repairs or improvements.

3. What are thermal camera cores?

Thermal camera cores, also known as thermal imaging cores or thermal camera modules, are the main components of thermal cameras. They contain the essential elements required for capturing and processing infrared radiation to create thermal images. These cores typically include an infrared detector, optics, signal processing electronics, and interfaces for outputting the thermal image.
