256x192 12μm Medical Thermal Camera Radiometric Thermal Module for 32℃~+42℃ Body Temperature Measurement

Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iHA212W
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 256x192 Pixel Pitch 12μm
Temperature Range 32℃~+42℃ Power Consumption 0.3W
Supply Voltage 5V±0.5 Digital Frame Rate 25Hz
Highlight

IP54 Uncooled Thermal Camera Core

,

LC160 Thermal Camera Core 17um

,

IP54 Thermal Camera Module

Leave a Message
Product Description
Product Overview

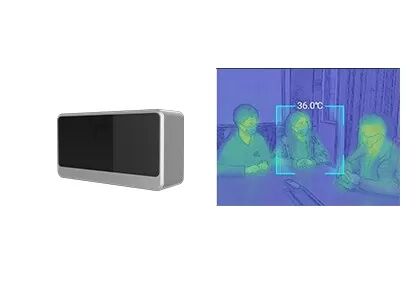

Built on a 256×192 12μm uncooled infrared detector, the iHA212W infrared camera core is purpose-built for non-contact biological temperature measurement with accuracy reaching ±0.5°C. It enables fast, radiation-free thermal imaging to display real-time surface temperature distribution and subtle temperature changes on biological objects.

Onboard ISP and smart image algorithms deliver clear thermal images and temperature matrix data with wide compatibility, and a fully enclosed protective structure reinforces its durability. With a standard Type-C interface for power, data, and control, alongside Android and Linux SDKs for stream analysis and temperature conversion, it serves medical diagnostics, inspection, early disease screening, and livestock temperature measurement applications.

Main Features
High-Precision Temperature Measurement
  • Designed specifically for non-contact biological temperature measurement
  • Accuracy of ±0.5°C
Complete Design, Reliable Performance
  • ISP processing board and intelligent image algorithms deliver clear thermal images and temperature matrix data directly, offering broad compatibility
  • Fully enclosed with protective structural components for enhanced durability and reliability
Easy Integration, Simple Development
  • Standard Type-C interface for power supply, data transmission, and control
  • Provides SDKs for Android/Linux, simplifying video stream analysis and conversion from gray to temperature
Product Specifications
Model: iHA212W
IR Detector Indicators
Sensitive Material VOx
Resolution 256×192
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤50mK
Image Processing
Digital Frame Rate 25Hz
Start-up Time ≤6s
Digital Video RAW / YUV / TMP
Image Algorithm NUC / 3DNR / DNS / DRC / EE
Image Display Medical / Pseudo Color
PC Software
Computer / Mobile Software Module Control & Video Display
Temperature Measurement
Operating Temperature 10℃ ~ +50℃
Temperature Measurement Range 32℃ ~ +42℃
Temperature Measurement Accuracy ≤ ±0.5℃ (after 2-minute warm-up, ambient 23 ± 3℃, target 32–42℃)
Measurement Distance 0.5m – 2.5m; supports multi-distance temperature measurement via SDK
SDK Windows / Android / Linux SDK — supports video stream analysis, module control, comprehensive array temperature measurement, temperature imaging, temperature window setting, and multiple integration
Electrical
Standard External Interface USB (Type-C)
Communication Interface USB
Digital Video Interface USB 2.0
Supply Voltage 5V ± 0.5
Typical Power Consumption 0.3W
Optical Lens
Focus Length 3.2mm
Type of Lens Fixed Focus Athermal
F/# 1
FOV (H×V) 56° × 42°
Environmental Adaptability
Operating Temperature -10℃ ~ +50℃
Storage Temperature -45℃ ~ +85℃
Humidity 5% ~ 95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g / 11ms, Impact Direction, 3 Axis, 6 Direction
ESD 6kV contact discharge; 8kV air discharge
Certification
Environmental Certification ROHS 2.0 / REACH
Industrial Applications

The target customer group is mainly medical diagnosis, disease screening, animal agriculture, and home medical care.

Customized Service
  • Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements.
  • On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training.
  • Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions.
Frequently Asked Questions
1. What is the difference between a thermal imaging lens and a visual imaging lens?

The main difference is that thermal imaging lenses must be made of special materials. Infrared heat radiation cannot pass through glass (silicon), so special lenses made of germanium, chromium, and other metal materials are used. This also makes the price of a thermal imaging lens somewhat higher than that of an optical lens, which increases the price of the whole device.

2. What is the difference between thermal imaging and visual imaging in terms of imaging principle?

Their imaging principles are basically the same. Imaging devices capture light waves within a certain wavelength range. In nature, the wavelength range of visible light is from 0.39μm to 0.78μm, while the wavelength range of infrared thermal radiation is from 0.75μm to 1000μm. As long as the target temperature is higher than absolute zero (-273℃), there will be infrared radiation.
