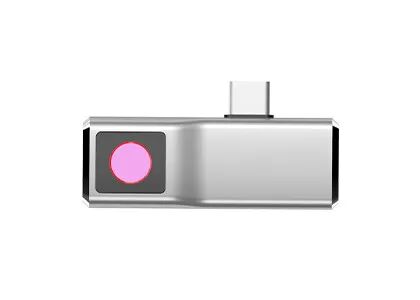

Miniature VOx FPA Thermal Imaging Camera Module 120x90 17μM

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number TIMO120
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Spectral Range 8~14μm NETD ≤60mK
Resolution 120x90 Pixel Pitch 17μm
Temperature Range -20℃~+120℃ (Customizable) Size 8.5x8.5x9.16mm
High Light

Miniature Thermal Imaging Camera Module


FPA Thermal Imaging Camera Module


Thermal Camera Core 17uM

Leave a Message
Product Description
TIMO120 Thermal Camera Core


Miniature VOx FPA 120x90 / 17μm Thermal Imaging Camera Core Integrated in Infrared Cameras


Product Description


TIMO120 miniature infrared module integrates wafer-level optics, 120x90 / 17μm wafer level package (WLP) detector and basic image processing circuit to quickly obtain thermal images of the target area and heat distribution.


TIMO120 thermal imaging core is oriented for optimized size, weight, power, cost (SWaP-C) infrared imaging applications. Its super miniature structure and ultralow power consumption are convenient to be integrated into various smart devices, thermal imagers or mobile terminals with strict requirements on cost, size and weight.


Main Features


- Minimum WLP infrared module, dimension at 8.5x8.5x9.16mm
- DVP Interface, compatible with various embedded platforms
- Visible camera module equivalent, directly integration
- Complete SDK development kit
- Low power design for extend longer operating time
- Low cost for many kinds of intelligent applications


Product Specifications


Model TIMO-120
IR Detector Performance
Resolution 120x90
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD ≤60mK
Lens Type WLO
Focus Mode Fixed Zoom
HFOV 90°/50°
Depth of Field 10cm to Infinity
Frame Rate 1~30Hz (Customizable)
Temperature Measurement
Temperature Range -20°C ~ +120°C (Customizable)
Temperature Accuracy Customizable (Meet the Requirements of Body or Industrial Thermography)
AVDD 3.6V±0.05V
VSK/VDET 4.7±0.05V
DVDD 1.8V±0.05V
Interface Digital Interface
Power Consumption 45mW (Typical Mode); 9mW (Low Power Mode)
Physical Characteristics
Dimension (mm) 12x10x5.48 (HFOV=90°); 8.5x8.5x9.16 (HFOV=50°) (The Specifications Shall Prevail)
Operation Temperature -20°C ~ +60°C
Storage Temperature -40°C ~ +85°C


Industrial Applications


The TIMO120 infrared thermal camera core is widely used in many areas, such as Thermography, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.


Miniature VOx FPA Thermal Imaging Camera Module 120x90 17μM 0


Global Sensor Technology Team


Miniature VOx FPA Thermal Imaging Camera Module 120x90 17μM 1




1. Thermal Image Vs. Visual Image

Visible light is an electromagnetic wave that can be seen by humans. Its wavelength range generally falls between 360-400 nm~760-830nm. This electromagnetic spectrum is also called the visible spectrum, and its frequency range is 830-750THz~395-360THz.

Infrared is an electromagnetic wave with a wavelength between microwave and visible light. Its wavelength is between 760 nanometers (nm) and 1 millimeter (mm). It is an invisible light with a wavelength longer than red light. The frequencies are approximately in the range of 430 THz to 300 GHz.


2. Detector of Thermal Image & Visual Image

For the core detectors of imaging device, visible light devices use the CCD and CMOS detector, while thermal imaging uses cooled and uncooled detector. The main difference is that visible light CCD/CMOS can perceive light waves in the visible light band, and thermal imaging detectors can sense thermal radiation light waves in the infrared band. Infrared thermal imaging detectors are divided into many types according to different manufacturing processes and packaging materials. The more macroscopic feeling is that infrared thermal imaging detectors are more expensive than visible light CCDs.
