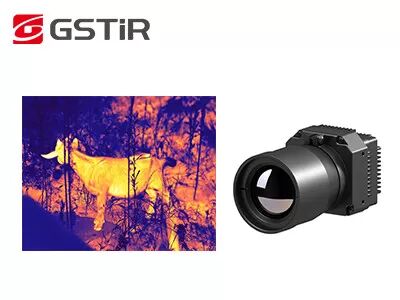

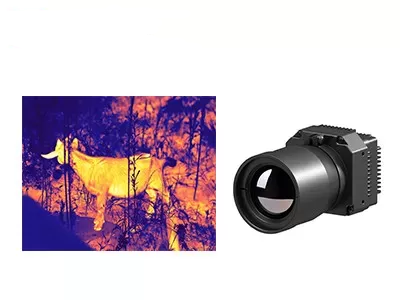

Uncooled Infrared Thermal Camera Module Core 640x512 For Industrial Thermography
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Temperature Range||-20℃~+550℃ (Customizable)||Temperature Accuracy||±2℃ Or ±2%|
|Spectral Range||8~14μm LW||Size||44.5x44.5x36.6mm|
Uncooled Thermal Camera Module Core,
640x512 Thermal Camera Module Core,
Industrial Thermography Camera Module
Infrared Thermal Camera Module Core 640x512 / 17μM For Industrial Thermography
PLUG617R uncooled thermal camera module consists of 640x512 / 17μm uncooled fpa infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.
PLUG617R is a kind of uncooled camera module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear thermal image.
As a leading thermal camera module manufacturers, Global Sensor technology is committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.
- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability
|IR Detector Performance|
|Digital Zoom||1~8X Continual Zoom, Step Size 1/8|
|Image Display||Black Hot/White Hot/Pseudo Color|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||50pin_HRS Interface|
|Communication Mode||RS232-TTL, 115200bps|
|Operating Temperature Range||-10°C~50°C|
|Temperature Range||-20°C~150°C, 100°C~550°C|
|Temperature Accuracy||±2°C or ±2% (Take the Maximum Value)|
|SDK||ARM/Windows/Linux SDK, Full Screen Thermography|
|Operation Temperature||-40°C ~ +70°C|
|Storage Temperature||-45°C ~ +85°C|
|Vibration||Random Vibration 5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm
Motorized Lens: 75mm/100mm/150mm
The PLUG617R thermal imaging module is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.
1. What is infrared thermal imaging?
Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.
2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
