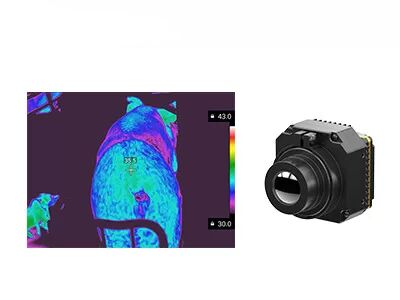

High Sensitivity Infrared Thermal Camera Module Core NETD <30mk
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Temperature Range||-20℃~+550℃ (Customizable)||Temperature Accuracy||±2℃ Or ±2%|
|Spectral Range||8~14μm LW||Size||44.5x44.5x36.6mm|
NETD 30mk Camera Module Core,
Infrared Thermal Camera Module Core,
8X Continual Zoom Camera Module
Infrared Thermal Camera Module Core 640x512 / 17μM For Industrial Thermography
PLUG617R uncooled thermal camera module consists of 640x512 / 17μm uncooled fpa infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.
PLUG617R is a kind of uncooled camera module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear thermal image.
As a leading thermal camera module manufacturers, Global Sensor technology is committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.
- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability
|IR Detector Performance|
|Digital Zoom||1~8X Continual Zoom, Step Size 1/8|
|Image Display||Black Hot/White Hot/Pseudo Color|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||50pin_HRS Interface|
|Communication Mode||RS232-TTL, 115200bps|
|Operating Temperature Range||-10°C~50°C|
|Temperature Range||-20°C~150°C, 100°C~550°C|
|Temperature Accuracy||±2°C or ±2% (Take the Maximum Value)|
|SDK||ARM/Windows/Linux SDK, Full Screen Thermography|
|Operation Temperature||-40°C ~ +70°C|
|Storage Temperature||-45°C ~ +85°C|
|Vibration||Random Vibration 5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm
Motorized Lens: 75mm/100mm/150mm
The PLUG617R thermal imaging module is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.
1. What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.
2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.
3. What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
