MCT Material HD MWIR Cooled Infrared Detector 1280x1024 12μm
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | C1212M MWIR |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Product Details
| Type | MWIR Cooled IR Detector | Material | MCT |
|---|---|---|---|
| NETD | ≤20mK (F2/F4) | Size | 149x58.5x71mm |
| Resolution | 1280x1024/12μm | Spectral Range | 3.7~4.8μm MW |
| Highlight | HD MWIR Cooled Infrared Detector,MCT Cooled Infrared Detector 12uM,MWIR Cooled IR Detector 1280x1024 |
||
Product Description

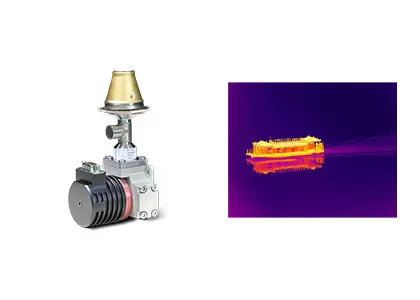

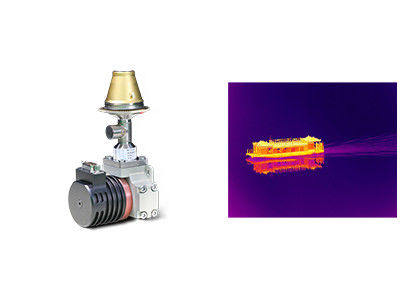

HD MWIR MCT Infrared Detector Cooled 1280x1024 12μM
Product Description
C1212M MWIR is one of the HgCdTe/MCT cooled mid wavelength infrared detector developed by SensorMicro. It is a combination of high definition, high performance and high reliability.
The C1212M MWIR MCT Cooled Infrared detector offers four times as many pixels in the same active image area as conventional 640x512 products. With large array 1280x1024 resolution it can realize wider field of view and provide more image details. The reduced 12µm pixel size offers better spatial resolution and match shorter optical lens focus to achieve the same range mission.
C1212M MWIR HgCdTe infrared detector is an ideal choice for thermal imaging applications that require superior long range performance and image details recognition in a low size, weight, and power package.
Main Features
Outstanding Performance
• 1280×1024 resolution for wider FOV and longer distance
• 12μm pixel size for better spatial resolution
Sharp & Clear Image
• High thermal sensitivity
• Good uniformity, effective pixel rate＞99.5%
Designed for Specific Applications
• F number can be customized
• Guarantee continuous supply
Product Specifications
| Model | C1212M MW |
| Material | MCT |
| Resolution | 1280x1024 |
| Pixel Pitch | 12μm |
| Spectral Range | 3.7μm～4.8μm MW |
| Working Mode | Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | 6.75Me-/4.8Me-(ITR) 5.25Me-/3.3Me-(IWR) |
| Dynamic Range | ITR Mode≥80dB IWR Mode≥76dB |
| Number of Output | 4 or 8; Up to 20Mpixel/s per Output |
| NETD | ≤20mK (F2/F4) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cryocooler Type | RS058F |
| Steady Power Consumption | ≤7W |
| Max Power Consumption | ≤17W |
| Power Supply | 24V DC |
| Cooling Time | ≤6min |
| Weight | ≤600g |
| Dimension (mm) | 149x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
Industrial Applications
The C1212M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
Company Profile
Our Vision:To push the boundaries of sensing and transform the way people connect with the world around them.
Our Mission:To harness the power of infrared sensing technology to transform industries worldwide, enabling smarter decisions, safer environments, and a more connected future.
Our Value:To create advanced infrared technology that makes the world a better place.
Our Service
Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
FAQs
1. Application of LWIR, MWIR/LWIR Duel-color Cooled Infrared Detector
In infrared thermal imaging technology, long-wave thermal detectors has strong penetration through dusty atmospheres, are not disturbed by sun glint effects and light reflections. Outstanding image quality can be obtained in various complex environments, such as vehicle drives in the dusty atmosphere, ship sails on the water with reflective light and aircraft is flying through the cloud.
The dual-color cooled infrared detector combines the advantages of mid-wave and long-wave detection into one cooled infrared detector assembly, which can simultaneously perform high-performance imaging in the duel wavebands, greatly reducing the false alarm rate. It can be used for the detection of complex backgrounds and the monitoring of high-speed moving targets.
