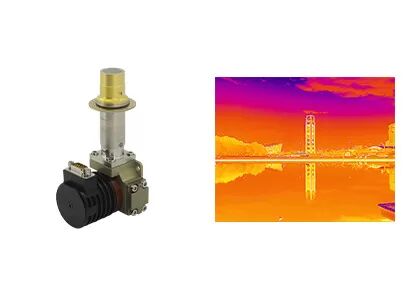

Cooled 640x512 15μm LWIR Infrared Detector Integrated Into EO-IR Systems
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | C615S LWIR |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Product Details
| Resolution | 640x512 | Pixel Pitch | 15μm |
|---|---|---|---|
| Stable Power Consumption | ＜8W | High Sensitivity | NETD≤25mK |
| Spectral Range | 3.7~4.8μm (MW); 7.7~9.5 (LW) | Size | 142x58.5x71mm |
| Highlight | LWIR Infrared Detector 15um,LWIR Infrared Detector 640x512,LWIR Cooled Infrared Detectors |
||
Product Description
Cooled 640x512 / 15μm LWIR Infrared Detector Integrated Into EO-IR Systems
Product Description
C615S LWIR integrated dewar cooler assembly is one of T2SL cooled infrared detectors developed by SensorMicro. It is a 640x512 / 15µm Type II Superlattice (T2SL), Integrated Detector Cooler Assembly (IDCA), designed for high performance 7.7~9.5μm Long Wave Infrared (LWIR) wavebands.
With 640x512 resolution and reduced pixel pitch to 15µm, the C615S LWIR integrated dewar cooler assembly provides clear image and superior performance. It features in most advanced technology, high quantum efficiency, high frame rate, high sensitivity, low noise, best non-uniformity etc.
As a LWIR detector, it presents high performance under the conditions of sand or dust climate and will not be affected by sunlight flicker or any high temperature flame.
Main Features
- Resolution: 640x512
- Pixel Pitch: 15µm
- High Sensitivity
- Good Imaging Effect
- Low Noise
- Stable Performance
- Excellent Non-uniformity
Product Specifications
| Model | C615S LWIR |
| Material | T2SL |
| Resolution | 640x512 |
| Pixel Pitch | 15um |
| Spectral Range | 7.7μm～9.5μm LW |
| Working Mode | Snapshot; ITR & Interlace Binning Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | ITR: 12.22Me-/6.67Me- Interlace Binning: 24.44Me-/13.33Me- |
| Dynamic Range | ITR: ≥76dB Interlace Binning: ≥77dB |
| Output Channel | 4; Up to 22.5 Mpixel/s per Output |
| NETD | ≤30mK(F2 ITR) ≤25mK(F2 Interlace Binning) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cooler Type | RS058 |
| Steady Power Consumption | <8W |
| Max Power Consumption | <17W |
| Power Supply | 24V DC |
| Cooling Time | <5min30s |
| Weight | ≤600g |
| Dimension (mm) | 148x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
Industrial Applications
The C615S LWIR cooled IR detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
Diverse Product Portfolio
A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.
Rich Product Variety
Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
Outstanding Performance
Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.
Easy Integration
Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
FAQs
1. Application of LWIR, MWIR/LWIR Duel-color Cooled Infrared Detector
In infrared thermal imaging technology, long-wave thermal detectors has strong penetration through dusty atmospheres, are not disturbed by sun glint effects and light reflections. Outstanding image quality can be obtained in various complex environments, such as vehicle drives in the dusty atmosphere, ship sails on the water with reflective light and aircraft is flying through the cloud.
The dual-color cooled infrared detector combines the advantages of mid-wave and long-wave detection into one cooled infrared detector assembly, which can simultaneously perform high-performance imaging in the duel wavebands, greatly reducing the false alarm rate. It can be used for the detection of complex backgrounds and the monitoring of high-speed moving targets.
