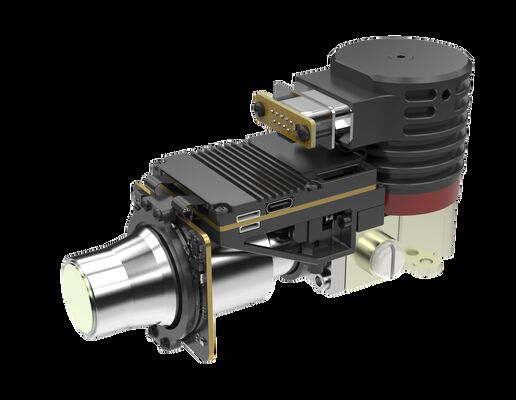

23mm Lens 320x256 Resolution 10mK NETD Optical Gas Imaging Camera for Gas Leak Detection

  • 23mm Lens 320x256 Resolution 10mK NETD Optical Gas Imaging Camera for Gas Leak Detection
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification RoHS; Reach
Model Number LFM330Z6
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 320x256/30μm Optional Lens Fixed Zoom
Style Cooled Infrared Module NETD 10mK (F1.5)
Spectral Range 4.2±0.1μm～4.4±0.1μm Size 142mm×58.5mm×80mm
Highlight

23mm Lens Gas Imaging Camera

,

MWIR Gas Imaging Camera 30um

,

Visualizing Gas Leak MWIR Camera
Leave a Message
Product Description

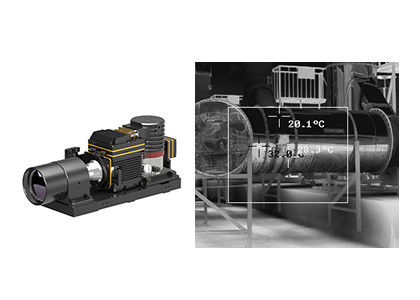

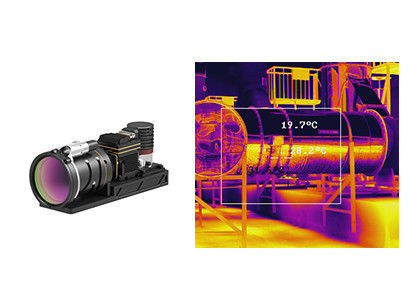

23mm Lens MWIR Optical Gas Imaging Camera for Visualizing Gas Leak
Gas Leakage Detection Camera
The GAS330 is a cooled infrared camera module specifically designed for gas leakage detection. It integrates a 320x256 / 30µm MCT cooled MWIR infrared detector to visualize invisible Volatile Organic Compounds (VOCs) that cannot be seen by the naked eye.
Gas leakage, particularly harmful Volatile Organic Compounds, presents serious safety concerns in industrial production. Escaping gases or potential explosions can cause significant damage to personnel and property, making reliable gas detection systems essential for operational safety.
Global Sensor Technology (GST) provides comprehensive infrared thermal imaging integration solutions, including professional technical support and full after-sales services for gas leak detection. Camera manufacturers can efficiently integrate our infrared modules to design customized gas leak detection cameras.
Main Features
  • Resolution: 320x256
  • Pixel Pitch: 30µm
  • NETD: 10mK (F1.5), High Sensitivity
  • Spectral Response: 4.2±0.1μm～4.4±0.1μm
Product Specifications
Module model LFM330Z6
Resolution 320*256
Pixel size 30μm
Spectral response 4.2±0.1μm～4.4±0.1μm
Typical NETD 10mK (F1.5)
Frame rate 30Hz/60Hz
Digital video Standard: DVP/LVDS/USB2.0
Optional: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode fiber/Multi-mode fiber
Communication Standard: USB2.0/LV-TTL
Optional: RS422/CAN/USB3.0/GigE
Cooling time (23 ℃) ≤8min@12V
Stable power consumption (23 ℃) ≤10W
Size (mm) 142*58.5*80
Weight (g) ≤680
Working temperature -40℃～+71℃
Focal length 23mm/55mm
Industrial Applications
The LFM330Z6 gas leak detection thermal imaging detector provides reliable visualization of invisible CO₂ plumes even in harsh environments. Applications include: Carbon Capture, Utilization and Storage (CCUS), Enhanced Oil Recovery (EOR), Power Generation Industry, Food & Beverage Industry, Semiconductor & Electronics Manufacturing, Greenhouse Agriculture, and Waste Treatment & Biogas Plants.
Our Product Line
In-House Infrared Detector Technologies
  • 8-inch 0.11μm VOx Uncooled Infrared Detectors
  • 8-inch 0.5μm MCT Cooled Infrared Detectors
  • 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Advantages
  • 6 million self-developed infrared detectors per year
  • 30,000 m² semiconductor fabrication facility
  • 20,000 m² cleanroom area
Frequently Asked Questions
Application of LWIR, MWIR/LWIR Dual-color Cooled Infrared Detector
In infrared thermal imaging technology, long-wave thermal detectors offer strong penetration through dusty atmospheres and are not affected by sun glint effects or light reflections. This enables outstanding image quality in various complex environments, including vehicle operations in dusty conditions, ship navigation on reflective water surfaces, and aircraft flying through clouds.
The dual-color cooled infrared detector combines the advantages of mid-wave and long-wave detection in a single assembly, allowing simultaneous high-performance imaging across both wavebands. This significantly reduces false alarm rates and is ideal for detecting complex backgrounds and monitoring high-speed moving targets.
