High Sensitivity OGI Infrared Camera For Petrochemical Industry
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Style | Cooled Infrared Module | Resolution | 320x256 / 30μm |
|---|---|---|---|
| NETD | ≤15mK | Spectral Range | 3.2±0.1~3.5±0.1μm |
| Size | 155x67x80mm | Optional Lens | Fixed Zoom |
| High Light | High Sensitivity OGI Infrared Camera,Petrochemical Industry OGI Infrared Camera,OGI Cooled Infrared Module |
||
Product Description
GAS Leakage Detection Camera
High Sensitivity OGI Infrared Camera For Petrochemical Industry
Product Description

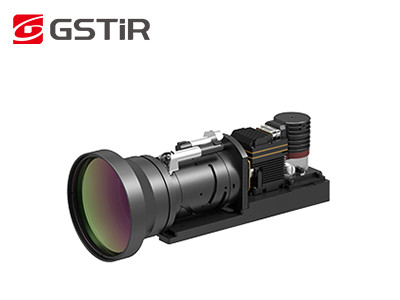

GAS330 is a cooled infrared camera module for gas leakage detection. It integrates 320x256 / 30µm MCT cooled MWIR infrared detector to visualize the invisible Volatile Organic Compounds (VOCs) that cannot be seen by naked eyes.
Gas leakage, especially the harmful Volatile Organic Compounds, is always a serious problem that can not be ignored in safety production. Once these harmful gases escape, or worse, cause an explosion, people and property will suffer huge losses. Therefore, great attention should be paid to the detection of gas leakage.
Main Features
- Resolution: 320x256
- Pixel Pitch: 30µm
- NETD≤15mK, High Sensitivity
- Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm
- Wavelength Customizable Based on Different Requirements
- Integrate with DVP/CameraLink Interface Easily
Product Specifications
| Model | GAS330 |
| IR Detector Performance | |
| Resolution | 320x256 |
| Pixel Pitch | 30μm |
| Cryocooler | RS058 |
| Spectral Range | 3.2μm±0.1μm~3.5μm±0.1μm MW |
| Cooling Time (20°C) | ≤8min |
| NETD (20°C) | ≤15mK |
| Image Processing | |
| Frame Rate | 30Hz |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | ×1/×2/×4 |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | NUC/AGC/IDE |
| Electrical Specification | |
| Standard External Interface | J30JZ 25pin |
| Analog Video | PAL |
| Digital Video | 16bit RAW/YUV: 16bit DVP/Cameralink Output |
| External Sync | Frame External Sync: RS422 Level |
| Communication | RS422, 115200bps |
| Power Supply | 20~28VDC |
| Stable Power Consumption | 12W |
| Dimension (mm) | 155×67×80 |
| Weight | ≤900g |
| Operation Temperature | -40°C ~ +60°C |
| Vibration Magnitude | Vibration: GJB Vehicle-mounted High Speed Transport Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each |
| Optical Lens | |
| Optional Lens | Fixed Zoom: 23mm/F1.5; 55mm/F1.5 |
Industrial Applications
The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.
Our Product Line
FAQs
1. Advantages of Optical Gas Imaging
Time-saving & Efficient: support large-scale real-time detection, rapid leak location, no need for interrupting production.
Long Range Detection: away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
Easy to Analyze: intuitive imaging, instant storage, convenient analysis
Multi-function Inspection: a variety of gases can be detected, with excellent remote temperature measurement function
2．Working Principle of Optical Gas Imaging
Optical gas imaging is a kind of infrared technology that could see invisible industrial gases.
After absorbing infrared radiation at specific wavelengths, infrared radiation difference will cause between the gas and the background.
The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
