RS422 Cooled Infrared MWIR Camera Module for Non Contact Gas Leakage Detection
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Resolution||320x256 / 30μm||Spectral Range||3.2±0.1~3.5±0.1μm|
|Product Size||155x67x80mm||Product Weight||≤900g|
Cooled Infrared MWIR Camera Module,
RS422 MWIR Camera Module

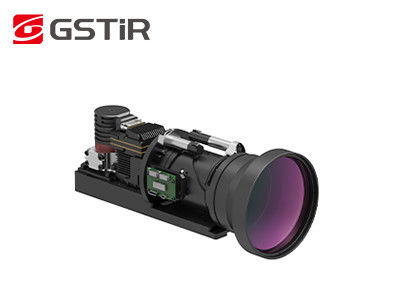

GST 320x256 / 30μm Cooled Infrared Camera Module for Non-contact Gas Leakage Detection
GAS330 is a cooled infrared thermal imaging module specially designed for gas leakage detection. It can automatically detect gas leaks of many industrial gases in a few seconds accurately and safely without the need of shutting down any systems.
GAS330 infrared gas leak detection camera uses 320x256 / 30μm cooled MWIR infrared detector. It has an advantages of non-contact measurement in dangerous areas or areas that are difficult to access, so as to ensure the safety of inspection personnel.
By using this infrared thermal imaging technology in the petrochemical industry, the safety production, environmental protection supervision and cost saving can be ensured.
- Resolution: 320x256
- Pixel Pitch: 30µm
- NETD≤15mK, High Sensitivity
- Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm
- Wavelength Customizable Based on Different Requirements
- Integrate with DVP/CameraLink Interface Easily
|IR Detector Performance|
|Spectral Range||3.2μm±0.1μm~3.5μm±0.1μm MW|
|Cooling Time (20°C)||≤8min|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||J30JZ 25pin|
|Digital Video||16bit RAW/YUV: 16bit DVP/Cameralink Output|
|External Sync||Frame External Sync: RS422 Level|
|Stable Power Consumption||12W|
|Operation Temperature||-40°C ~ +60°C|
|Vibration Magnitude||Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
|Optional Lens||Fixed Zoom: 23mm/F1.5; 55mm/F1.5|
The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.
1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. GSTiR cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
3. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
