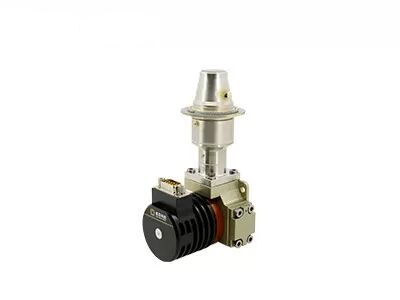

Long Wave Type II Superlattice Cooled Infrared Detectors 320x256 30μm
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Resolution||320x256 / 30μm||NETD||≤25mK (F2)|
|Spectral Range||7.7~9.5μm LW||Size||142x58.5x71mm|
Cooled Infrared Detectors 30μm,
Long Wave Infrared Detectors 320x256
C330S LWIR is one of T2SL lwir cooled infrared detectors developed by Global Sensor Technology (GST). It consists of a 320x256@30µm Type II Superlattice (T2SL) cooled photon detector, Integrated Detector Cooler Assembly (IDCA), designed for high performance 7.7~9.5μm Long Wave Infrared (LWIR) wavebands.
Without fear of interference, C330S LWIR cooled lwir detector is suitable for target detection in complex background, such as ships on the sea in the scene of light reflection on the water surface, aircraft in the background of clouds in the sky, etc.
T2SL cooled detectors adopts the world's leading T2SL technology which enables mass production capability and thus ultimately it will benefit the users with more affordable price but never compromise in performance. The industrial standard size and interface enables customers to switch to and benefit from the most advanced T2SL technology without further R&D investment.
- Resolution: 320x256
- Pixel Pitch: 30µm
- High Sensitivity
- Good Imaging Effect
- Low Noise
- Stable Performance
- Excellent Non-uniformity
|Spectral Range||7.7μm～9.5μm LW|
|Working Mode||Snapshot; ITR Integration Mode; Windows Mode; Anti-blooming|
|Output Channel||1 or 4; Up to 6.6 Mpixel/s per Output|
|Effective Pixel Rate||≥99.5%|
|Steady Power Consumption||<8W|
|Max Power Consumption||<17W|
|Power Supply||24V DC|
|Working Temperature||-45°C ~ +71°C|
The C330S LWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. GSTiR cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
3. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
