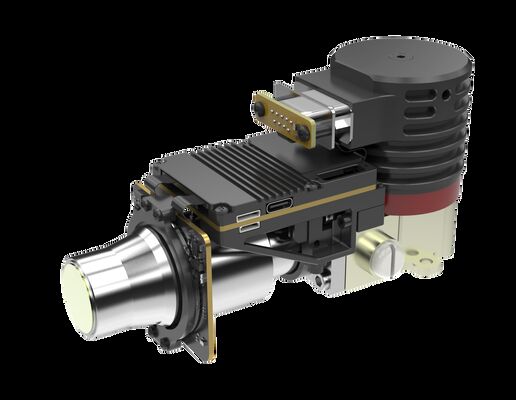

320x256 Resolution 30μm Pixel Size MWIR Cooled Optical Gas Imaging Module with 10mK NETD for Gas Leak Detection

  • 320x256 Resolution 30μm Pixel Size MWIR Cooled Optical Gas Imaging Module with 10mK NETD for Gas Leak Detection
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification RoHS; Reach
Model Number LFM330Z7
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cooling Time (23 ℃) ≤8min@12V Function Gas Leak Detection
Pixel Size 30μm Spectral Range 4.5±0.1μm～4.7±0.1μm
Detector Resolution 320x256 NETD 10mK (F1.5)
Highlight

Gas Imaging MWIR Thermal Module

,

ISO9001 Optical Gas Imaging Module
Leave a Message
Product Description
Cooled Optical Gas Imaging MWIR 320x256 Thermal Module
320x256 30 μm MWIR Cooled Optical Gas Imaging Thermal Module for Visualizing Gas Leaks
The LFM330Z7 thermal module enables rapid wide-area scanning, precise leak source localization from a distance, and clear imaging capabilities. This technology helps inspection personnel efficiently identify potential hazards and ensure operational safety. Designed as an integration accelerator for optical gas imaging systems, it utilizes advanced infrared technology to quickly detect invisible carbon monoxide (CO) leaks, enhancing safety in petrochemical production, transportation, and processing operations.
Main Features
  • High sensitivity and reliability
  • High effective pixel rate
  • Clear visualization of minor leaks with gas-enhanced HSM algorithm support
  • Easy integration with multiple interfaces and RAW/YUV image output
Product Specifications
Module ModelLFM330Z7
Resolution320×256
Pixel Size30μm
Spectral Response4.5±0.1μm～4.7±0.1μm
Typical NETD10mK (F1.5)
Frame Rate30Hz/60Hz
Digital VideoStandard: DVP/LVDS/USB2.0
Optional: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode fiber/Multi-mode fiber
CommunicationStandard: USB2.0/LV-TTL
Optional: RS422/CAN/USB3.0/GigE
Cooling Time (23℃)≤8min@12V
Stable Power Consumption (23℃)≤10W
Size142×58.5×80 mm
Weight≤680g
Working Temperature-40℃～+71℃
Focal Length23mm/55mm
Industrial Applications
The LFM330Z7 cooled MWIR infrared camera core is widely deployed across industries where CO leak detection is critical, revolutionizing safety monitoring practices:
  • Petrochemical industry: Monitoring hydrocarbon combustion, catalytic reforming, and gas storage processes
  • Metallurgical industry: Detecting CO from incomplete fuel combustion during steelmaking and metal smelting
  • Residential and commercial buildings: Identifying CO leaks from gas water heaters, furnaces, and boilers
  • Scientific research and environmental monitoring: Studying CO emission mechanisms and atmospheric distribution
Our Service Approach
Pre-Sales
Requirement Analysis
Scenario Assessment
Product Selection
Customized Solutions
Deployment
Rapid Delivery
System Integration & Testing
Technical Training
Application Guidance
After-Sales
Remote Diagnostics
Warranty Service
Firmware Upgrades
Technical Maintenance
Frequently Asked Questions
In which industries can the infrared detectors / thermal camera cores be used?
SensorMicro thermal camera modules are extensively utilized across multiple sectors including:
  • Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
  • Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
  • Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
  • UAVs Payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
  • Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
  • ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
  • AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
  • Other Applications: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
