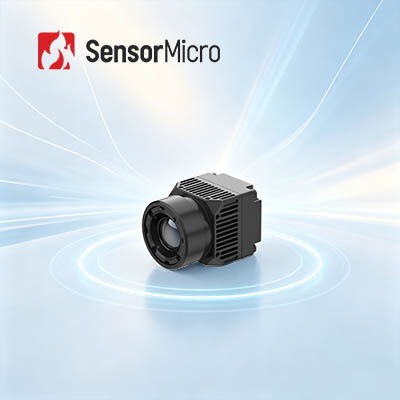

640x512 Resolution 8μm Pixel Pitch Uncooled Thermal Module with ±0.5°C Accuracy for Health Diagnosis

  • 640x512 Resolution 8μm Pixel Pitch Uncooled Thermal Module with ±0.5°C Accuracy for Health Diagnosis
Place of Origin China
Brand Name SensorMicro
Certification RoHS2.0; Reach
Model Number iHA608W
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 Power Consumption 0.6W
Spectral Range 8~14μm Pixel Pitch 8μm
Typical NETD ≤30mK Frame Rate 25Hz
Highlight

Fast Integration Uncooled Thermal Module

,

Health Diagnosis Uncooled Thermal Module

,

17um Thermal Camera For Fever Detection
Leave a Message
Product Description
640x512 8μm Uncooled Thermal Module Fast Integration for Health Diagnosis
Product Overview
Meet iHA608W — our dedicated medical uncooled infrared camera core built with ApexCore 640×512 8μm detector. Designed for non‑contact body temperature capture, it reaches outstanding ±0.5°C measurement accuracy. Powered by specialized medical image processing algorithms, it renders rich‑detail thermal images, maps temperature distribution visually and outputs consistent temperature data. Its 8‑μm pixel architecture brings notable size and weight reduction. Type‑C video output and USB2.0 communication streamline your system build. Build your next‑gen devices for medical diagnosis, public‑area health screening or livestock temperature tracking with this compact thermal core.
Main Features
  • Reliable temperature accuracy & detailed thermal visualization
  • Optimized for non‑contact human temperature measurement, accuracy to ±0.5°C
  • Medical‑grade optics + medical thermal algorithms deliver sharp thermal imagery
  • Tiny footprint ideal for compact device development
  • ApexCore 8‑μm infrared sensor enables compact lightweight hardware
  • 21×21×31.5 mm dimension, only 25±2 g weight for embedded solutions
  • Developer‑friendly interfaces & multi‑OS SDK
  • Standard Type‑C & USB2.0 interfaces for quick hardware integration
  • Windows / Android / Linux SDK lowers your development threshold
Product Specifications
Model iHA608W
IR Detectors Indicators
Sensitive Material VOx
Resolution 640×512
Pixel Size 8μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Digital Frame Rate 25Hz
Start-up Time ≤6s
Digital Video RAW/YUV/TMP
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display Medical/Pseudo Color
PC Software
Computer Software Module Control & Video Display
Temperature Measurement
Operating Temperature 10℃~+50℃
Temperature Measurement Range 32℃~+42℃
Temperature Measurement Accuracy ≤±0.5℃ (after 2-minute warm-up, ambient 23±3°C, target 32-42°C)
Measurement Distance 0.5m-5 m; supports multi-distance temperature measurement via SDK
SDK Support Windows/Android/Linux SDK, Realize Video Stream Analysis, Module Control, Comprehensive Array Temperature Measurement, Temperature Imaging, Temperature Window Setting, Multiple Integration
Electrical
Standard External Interface USB(TYPE-C)
Communication Interface USB
Digital Video Interface USB2.0
Supply Voltage 5V±0.5
Typical Power Consumption 0.6W
Optical Lens
Focus Length 4mm
Type of Lens Fixed Focus Athermal
F/# 1
FOV(H×V) 69.2°×55.4°
Mechanical
Size (including lens) 21mm×21mm×31.5mm (including 4mm lens)
Weight (including lens) 25g±2 (including 4mm lens)
Environmental Adaptability
Operating Temperature -10℃~+50℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction, 3 Axis, 6 Direction
ESD 6kV contact discharge; 8kV air discharge
Certification
Environmental Certification ROHS2.0/REACH
Industrial Applications
The iHA608W thermal module is expected to be widely used in the fields of Disease Screening, Traditional Chinese Medicine Physiotherapy, Health Check-up, Rehabilitation etc. at present and in the future.

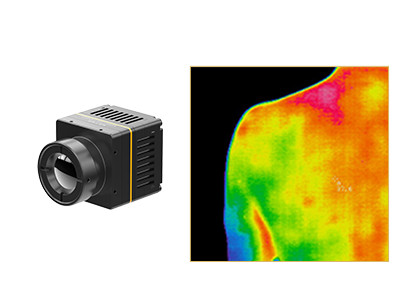

Infrared thermal imaging module for medical applications
Our Product Line
  • High sensitivity and excellent performance
  • World-leading technology in infrared industry
  • Various infrared detectors available
  • Both uncooled and cooled IR detectors in different formats and pixel size
  • Volume production to ensure fast delivery
  • Three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
1. What is thermal sensitivity?
Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It is directly related to the clarity measured by the thermal imager. It is a numerical value representing the signal-to-noise ratio of the temperature difference and measured in milliKelvins (mK). The smaller the thermal sensitivity value, the higher the sensitivity and the clearer the image.
2. What are the applications of thermal imaging?
Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in security & monitoring, industrial inspection, firefighting, predictive maintenance, ADAS, epidemic prevention, AIoT etc.
