Uncooled Thermal Camera Module 256x192 / 12μM For AIoT

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number COIN212/R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Temperature Range -20℃~+150℃ (Customizable) Resolution 256x192/12μm
Frame Rate 25Hz/30Hz/50Hz/60Hz NETD <40mK
Spectral Range 8~14μm Typical Power Consumption <0.4W
High Light

256x192 Uncooled Thermal Camera Module


12uM Thermal Camera Module


AIoT Infrared Thermal Camera Module

Leave a Message
Product Description

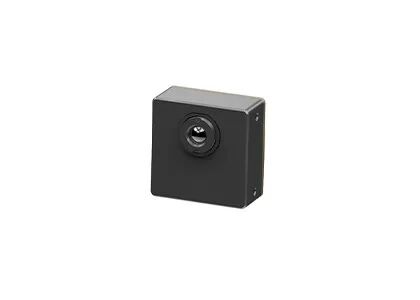

COIN212/R Tiny Infrared Camera Module


Price Affordable Uncooled Thermal Camera Module 256x192 / 12μm for AIoT


Product Description


COIN212/R is one of the COIN series thermal imaging camera core developed by Global Sensor Technology (GST). It integrates 256x192 / 12μm wafer level package (WLP) uncooled VOx infrared detector, high performance signal processing circuit and image processing algorithm. It has an optional thermographic function with measurement range from -20℃~150 ℃ for industrial or body temperature measurement.


Its lightweight and flexible features with various industry standard interfaces make this small infrared camera module beneficial to OEM customers for secondary development and integration in all kinds of thermal imagers and infrared thermographic cameras.


Until now, we have provided our customers with various mature and stable infrared thermal module integration solutions. It’s easier for COIN series infrared thermal camera module to be integrated into more terminal products and greatly reduces the cost for customers.


Main Features


- Mini Size: 20x20x10.4mm

- NETD<40mk

- Light Weight <8g

- Low Power Consumption

- Rapid Development & Integration


Product Specifications


Model COIN212/R
IR Detector Performance
Resolution 256x192
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <40mk
Image Processing
Frame Rate 25Hz/30Hz/50Hz/60Hz
Start-up Time <3s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface 30pin_HRS
Communication Mode RS232-TTL, 115200bps
Supply Voltage 3.5~5.5V
Typical Power Consumption <0.4W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Measurement Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±3°C or ±3% (Take the Maximum Value)
SDK Support ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 20x20x10.4 (With Lens)
Weight 7.5g±0.5g (With Lens)
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optional Lens Fixed Focus Athermal: 3.2mm


Industrial Applications


The COIN212/R infrared thermal camera module is widely used in Thermography, Security & Monitoring, Outdoors, Firefighting & Rescue, AIoT, Intelligent Hardware, UAV Payloads, ADAS etc.


Uncooled Thermal Camera Module 256x192 / 12μM For AIoT 0


GST Infrared Thermal Imaging Solution


Uncooled Thermal Camera Module 256x192 / 12μM For AIoT 1

Uncooled Thermal Camera Module 256x192 / 12μM For AIoT 2




1.What is Pseudo Color?

Pseudo color, also called false color, the thermal distribution of objects can be transformed into visual pictures by the infrared thermal imaging system and displayed on the monitor in grey level or pseudo color. Thus the temperature distribution of objects can be obtained. To make it easier for people to easily analyze a thermal image visually it is represented using a false colors representing the difference in temperature.


2. How many pseudo color can GST thermal imaging module offer?

- White Hot

- Lava

- Ironbow

- Hot Iron

- Medical

- Arctic

- Rainbow1

- Rainbow2

- Red Hot

- White Hot
