MWIR MCT 1280x1024 12μM Cooled Infrared Detector With Stirling Cryocooler

I'm Online Chat Now

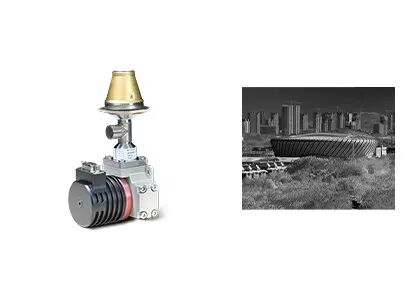

MWIR MCT 1280x1024 12μM Cooled Infrared Detector With Stirling Cryocooler

MWIR MCT 1280x1024 12μM Cooled Infrared Detector With Stirling Cryocooler
MWIR MCT 1280x1024 12μM Cooled Infrared Detector With Stirling Cryocooler

Large Image :  MWIR MCT 1280x1024 12μM Cooled Infrared Detector With Stirling Cryocooler

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C1212M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024/12μm NETD: ≤20mK (F2/F4)
Spectral Range: 3.7~4.8μm MW Size: 149x58.5x71mm
High Light:

12uM Cooled Infrared Detector

,

MWIR MCT Cooled Infrared Detector

,

MWIR Detector With Stirling Cryocooler

Cooled MWIR MCT 1280x1024 12μM Infrared Detector With Stirling Cryocooler

C1212M MWIR by GST Infrared



High Definition Large Array 1280x1024 / 12μm MCT Cooled Infrared Detector for Clear Thermal Imaging



Product Description



C1212M MWIR is one of the HgCdTe/MCT cooled mid wavelength infrared detectors developed by Global Sensor Technology (GST).



C1212M cooled infrared detector has high resolution, high performance and high reliability. It offers four times as many pixels in the same active image area as conventional 640x512 products. Its reduced 12µm pixel size offers better spatial resolution and matches shorter optical lens focus to achieve the same range mission. C1212M is an ideal choice for applications that require superior long range performance and image details recognition.



 Main Features



Outstanding Performance
• 1280×1024 resolution for wider FOV and longer distance
• 12μm pixel size for better spatial resolution



Sharp & Clear Image
• High thermal sensitivity
• Good uniformity, effective pixel rate>99.5%



Designed for Specific Applications
• F number can be customized
• Guarantee continuous supply



Product Specifications



Model C1212M MW
Material MCT
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 6.75Me-/4.8Me-(ITR)
5.25Me-/3.3Me-(IWR)
Dynamic Range ITR Mode≥80dB
IWR Mode≥76dB
Number of Output 4 or 8; Up to 20Mpixel/s per Output
NETD ≤20mK (F2/F4)
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058F
Steady Power Consumption ≤7W
Max Power Consumption ≤17W
Power Supply 24V DC
Cooling Time ≤6min
Weight ≤600g
Dimension (mm) 149x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C1212M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

MWIR MCT 1280x1024 12μM Cooled Infrared Detector With Stirling Cryocooler 0



Company Profile


MWIR MCT 1280x1024 12μM Cooled Infrared Detector With Stirling Cryocooler 1


FAQs



1.What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.



2. What is the advantage of infrared thermal imaging?

---See through total darkness

---Identification under camouflage

---Long range detection

---Heat distribution detection

---Non-contact temperature measurement

---Occupation awareness

---And so on



3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
