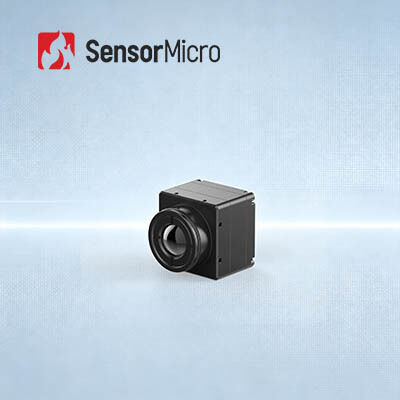

384x288 Resolution 17μm Pixel Pitch Thermal Module with 0.65W Power Consumption Infrared Camera Core

  • 384x288 Resolution 17μm Pixel Pitch Thermal Module with 0.65W Power Consumption Infrared Camera Core
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number COIN417RG3
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 384x288 Power Consumption 0.65W
Spectral Range 8~14μm Pixel Pitch 12μm
NETD ≤30mK Frame Rate 25Hz/30Hz/50Hz
Highlight

Fast Integration Thermal Module 640x512

,

0.8W Infrared Detector Thermal Module

,

RS232 Infrared Thermal Camera Module
Leave a Message
Product Description
Fast Integration Thermal Module with 384x288/17μm Infrared Detector
Product Overview

The COIN417RG3 infrared camera core for temperature measurement features a 384*288/17μm uncooled infrared detector and integrates a real-time temperature measurement component. It supports a wide temperature range with an accuracy of ±3°C or ±3%, enabling precise detection of abnormal temperature variations. Its ultra-low power design and compatibility with standard industry interfaces significantly reduce development and integration costs. The camera core is already deeply integrated into industrial temperature monitoring, process control, and smart manufacturing applications, accelerating the deployment of infrared thermographic systems.

Main Features
  • Comprehensive Features, Cost-Effective
    • Developed based on cost-effective uncooled IR detectors
    • Integrated with advanced image processing algorithms to enhance image quality
    • High temperature measurement accuracy up to ±2°C or ±2%, supporting temperature ranges of -20°C to 150°C and 100℃ to 550°C, customizable for extended ranges
  • Flexible Extension, Fast Integration
    • Multiple optical lens options available to meet various application needs
    • Supports multiple output modes including USB2.0/DVP/LVDS/BT.656
    • Outputs RAW/YUV image data, with serial port control
Product Specifications
Model COIN417RG3
IR Detectors Indicators Sensitive Material: VOx
Resolution: 384*288
Pixel Size: 17μm
Spectral Response: 8μm ~ 14μm
Typical NETD: ≤30mK
Image Processing Digital Frame Rate: 25/30/50Hz
Start-up Time: 6s
Analog Video: PAL/NTSC
Digital Video: RAW/YUV422
Image Algorithm: Non-uniformity Correction (NUC), 3D Noise Reduction (3DNR), 2D Noise Suppression (DNS), Dynamic Range Compression (DRC), Edge Enhancement (EE)
Image Display: 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software ICC Software: Module Control & Video Display
Electrical Standard External Interface: 50Pin: DF40C-50DP-0.4V(51), (HRS,Male)
Extension Board: USB3.0/USB2.0/VPC/USB2.0&VPC
Communication Interface: TTL-232/USB2.0
Digital Video Interface: DVP8/DVP16/USB2.0/BT.656/LVDS
Supply Voltage: 4.5~5.5V
Typical Power Consumption: 0.65W
Temperature Measurement Operating Temperature: -10℃~+50℃
Temperature Measurement Range: -20℃~+150℃, 100℃~+550℃
Temperature Measurement Accuracy: Greater of ±2℃ / ±2%
Partial Temperature Measurement: Support output maximum, minimum and average value of temperature measurement areas
SDK: Android/Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Mechanical Bare Core Size(mm): 25.4*25.4*16.5
Bare Core Weight(g): 16.6±1
Environmental Adaptability Operating Temperature: -40℃~+70℃
Storage Temperature: -45℃~+85℃
Humidity: 5%~95%, non-condensing
Vibration: Random Vibration, 5.35grms, 3-axis
Impact: Half Sine Wave, 40g/11ms, Impact Direction 3 Axis, 6 Direction
Certification: ROHS2.0/REACH
Optical Lens Optical Lens: Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm
Protection Level: IP67(Front Lens)
Industrial Applications

The COIN417RG3 thermal imaging module is applied in the field of Thermography, Security Monitoring, Robots, Intelligent Hardware, ADAS, Firefighting & Rescue etc.

Our Product Line
  • High sensitivity and excellent performance
  • World-leading technology in infrared industry
  • Various infrared detectors available - Both uncooled and cooled IR detectors in different formats and pixel size
  • Volume production to ensure fast delivery - Three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
1. What are the advantages of uncooled infrared detectors?
Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.
2. What are the key considerations on an infrared detector / thermal module for your application?
• The detector resolution
• The pixel size
• The NETD
• The image quality
• The lens options
• The power consumption
• The size and weight
• The mechanical & electrical interface
• The budget
