RS058 / RS046H MWIR MCT Infrared Detector for Long Range Surveillance

I'm Online Chat Now

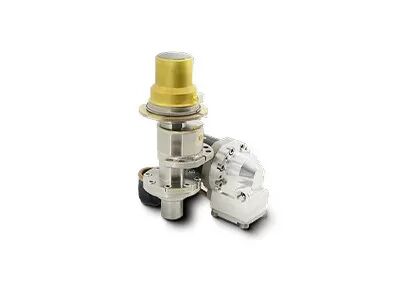

RS058 / RS046H MWIR MCT Infrared Detector for Long Range Surveillance

RS058 / RS046H MWIR MCT Infrared Detector for Long Range Surveillance
RS058 / RS046H MWIR MCT Infrared Detector for Long Range Surveillance

Large Image :  RS058 / RS046H MWIR MCT Infrared Detector for Long Range Surveillance

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C330M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 320x256/30μm NETD: ≤9mK (F2); ≤15mK (F4)
Spectral Range: 3.7~4.8μm MW Size: 142x58.5x71mm
Cryo Cooler: RS058/RS046H Weight: ≤600g
High Light:

Long Range Surveillance MCT Infrared Detector

,

RS046H MCT Infrared Detector

,

RS058 Thermal Security Camera

MWIR MCT Infrared Detector 320x256 / 30μm for Long Range Surveillance

Cooled Infrared Detector



320x256 / 30μm MWIR MCT Cooled Infrared Detector for Surveillance Camera



Product Description



C330M MWIR MCT cooled infrared detector is specially designed by Global Sensor Technology (GST). It is with the most classical 320x256@30μm spec and is among the earliest products in GST product portfolio for nearly 10 years. Its wavelength, F number, mounting surface can be customized and multiple cryocoolers are available. C330M MWIR cooled MCT detector is interchangeable with most mainstream products when configured with RS058 integrated stirling cooler. It can be used for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.



 Main Features



- Resolution: 320x256

- Pixel Pitch: 30μm

- High Sensitivity

- Compact Design

- Lightweight

- Low Power Consumption



Product Specifications



Model C330M MW
Material MCT
Resolution 320x256
Pixel Pitch 30μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 36Me-/12Me-
Dynamic Range ≥80dB
Number of Output 1 or 4; Up to 6.6Mpixel/s per Output
NETD F2: ≤9mK
F4: ≤15mK
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058/RS046H
Steady Power Consumption ≤6W @ RS058
≤6W @ RS046H
Max Power Consumption ≤12W @ RS058
≤11W @ RS046H
Power Supply RS058: 24V DC
RS046H: 32V DC
Cooling Time ≤6min @ RS058
≤5min30s @ RS046H
Weight ≤600g
Dimension (mm) 142x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C330M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

RS058 / RS046H MWIR MCT Infrared Detector for Long Range Surveillance 0



GST Infrared Solution


RS058 / RS046H MWIR MCT Infrared Detector for Long Range Surveillance 1


FAQs



1. In which industries can the infrared detectors/thermal camera cores be used?



GST thermal camera modules are widely used in many industries such as:



- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention

- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety

- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue

- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation

- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol

- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles

- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots

- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
