|Technology:||Infrared Thermal Imaging||Resolution:||640x512/12μm|
|Application:||Security Monitoring||NETD:||≤17mK (F2); ≤18mK (F4)|
|Spectral Range8~14μm:||3.7~4.8μm MW||Operation Temperature:||-45℃~+71℃|
MWIR Infrared Thermal Imaging Detector,
12um Thermal Imaging Detector,
Surveillance Camera Cooled Infrared Detector

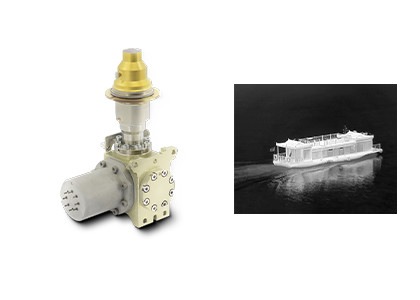

High Sensitivity 640x512 / 15μm MWIR Cooled Infrared Detector with RS058 Integral Stirling Cooler
C615M MWIR is one of the HgCdTe/MCT cooled infrared detectors developed by Global Sensor Technology (GST). It is with the most popular 640x512@15μm spec for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.
The C615M RS058 is interchangeable with most mainstream Scorpio like products when configured with RS058 integrated stirling cooler. The dewar design, the cooler dimension, and the mechanical/electrical interface are almost the same so that the camera integrators only need to take out their old defective counterpart and connect our interchangeable C615M RS058 easily for further internal configuration.
- Resolution: 640x512
- Pixel Pitch: 15μm
- High Sensitivity
- Compact Design
- Low Power Consumption
|Spectral Range||3.7μm～4.8μm MW|
|Working Mode||Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming|
|Number of Output||4; Up to 10Mpixel/s per Output|
|Effective Pixel Rate||≥99.5%|
|Steady Power Consumption||≤6W@RS058
|Max Power Consumption||≤12W @ RS058
≤11W @ RS046
|Power Supply||RS058: 24V DC
RS046: 32V DC
|Cooling Time||≤6min @ RS058
≤5min30s @ RS046
|Weight||≤600g @ RS058
≤350g @ RS046
|Dimension (mm)||RS046: 122x46.3x82
|Working Temperature||-45°C ~ +71°C|
The C615M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
1.What is infrared detector / thermal imaging sensor?
Infrared waves cannot be seen with the human eye. Infrared detector / thermal imaging sensor is an optical-electrical device to react to infrared radiation and thermal energy and convert it into electrical signal and then output visible thermal images.
2.What is WLP?
WLP refers to wafer level package. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared sensor. Together with metal package, ceramic package, they are the 3 main package formats of uncooled infrared detectors.
3. What's the advantage of WLP?
WLP IR detectors are specially designed to meet the miniaturization and low cost requirement in the application of infrared technology to consumer electronics market. Global Sensor Technology, with volume fabrication capability, is now offering a variety of WLP infrared module solutions to boost more new applications of emerging markets.
