HD Cooled MWIR Infrared Detector Integrated into Security Camera

I'm Online Chat Now

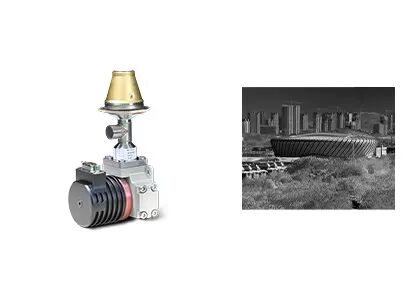

HD Cooled MWIR Infrared Detector Integrated into Security Camera

HD Cooled MWIR Infrared Detector Integrated into Security Camera
HD Cooled MWIR Infrared Detector Integrated into Security Camera

Large Image :  HD Cooled MWIR Infrared Detector Integrated into Security Camera

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C1212M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Technology: Infrared Thermal Imaging Application: System Integration
Resolution: 1280x1024/12μm Spectral Range: 3.7~4.8μm MW
NETD: ≤20mK (F2/F4) Size: 149x58.5x71mm
High Light:

HD Cooled MWIR Infrared Detector

,

Security Camera MWIR Infrared Detector

,

Integrated Thermal Security Camera

HD Cooled MWIR Infrared Detector Integrated into Security Camera

Cooled MWIR Infrared Detector



1280x1024 / 12μm MCT Cooled Infrared Detector with Fast Integration into Surveillance Camera Applied to Security Monitoring



Product Description



C1212M MWIR is one of the HgCdTe/MCT cooled mid wavelength infrared detector developed by Global Sensor Technology (GST). It is a combination of high definition, high performance and high reliability.



The C1212M MWIR MCT Cooled Infrared detector offers four times as many pixels in the same active image area as conventional 640x512 products. With large array 1280x1024 resolution it can realize wider field of view and provide more image details. The reduced 12µm pixel size offers better spatial resolution and match shorter optical lens focus to achieve the same range mission.



C1212M MWIR HgCdTe infrared detector is an ideal choice for thermal imaging applications that require superior long range performance and image details recognition in a low size, weight, and power package.



 Main Features


- Resolution: 1280x1024
- Pixel Pitch: 12μm
- High Sensitivity
- Compact Design
- Lightweight
- Low Power Consumption



Product Specifications



Model C1212M MW
Material MCT
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 6.75Me-/4.8Me-(ITR)
5.25Me-/3.3Me-(IWR)
Dynamic Range ITR Mode≥80dB
IWR Mode≥76dB
Number of Output 4 or 8; Up to 20Mpixel/s per Output
NETD ≤20mK (F2/F4)
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058F
Steady Power Consumption ≤7W
Max Power Consumption ≤17W
Power Supply 24V DC
Cooling Time ≤6min
Weight ≤600g
Dimension (mm) 149x58.5x71
Working Temperature -45°C ~ +71°C



Product Application


The C1212M MWIR cryogenically cooled infrared detector is suitbale for the long range monitoring system and complex environments, such as scarcely populated area, 24/7 all weather monitoring, harsh weather place.
HD Cooled MWIR Infrared Detector Integrated into Security Camera 0



For Security Monitoring


HD Cooled MWIR Infrared Detector Integrated into Security Camera 1


FAQs



1. What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3. What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening
