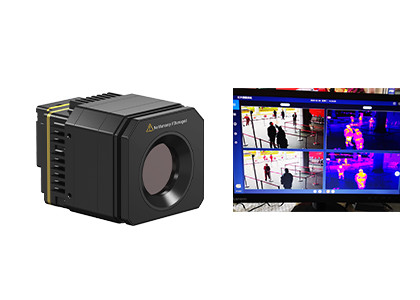

640×512/8μm Fever Screening Thermal Camera Module with High-precision Temperature Measurement and Ultra-compact Miniaturization

  • 640×512/8μm Fever Screening Thermal Camera Module with High-precision Temperature Measurement and Ultra-compact Miniaturization
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iHA608W
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640×512/8μm NETD ≤30mK
Spectral Range 8~14μm Size 21mm×21mm×31.5mm (including 4mm Lens)
Weight 25g±2 (including 4mm Lens) Digital Frame Rate 25Hz
Highlight

400x300 Fever Screening Thermal Camera

,

Fever Screening Thermal Camera Module
Leave a Message
Product Description
640×512/8μm Fever Screening Thermal Camera Module with High-precision Temperature Measurement
Product Overview

Built around ApexCore 640×512/8μm uncooled infrared detector, the iHA608W is a specialized thermal camera core targeting non-contact body temperature measurement. It achieves temperature accuracy up to ±0.5°C. Optimized medical image algorithms generate sharp thermal imagery and visualize real-time temperature distribution with trustworthy metering outputs.

Thanks to 8-μm pixel architecture, the module realizes ultra-compact miniaturization. Type-C video output and USB2.0 communication greatly accelerate system integration. It fits medical diagnosis, mass health screening and livestock thermal monitoring scenarios.

Main Features
  • Accurate Thermal Readout & High-clarity Thermal Output
    • Specially tuned for non-contact human temperature measurement, measurement accuracy reaches ±0.5°C
    • Medical-grade optics plus exclusive medical thermal algorithms produce high-fidelity thermal pictures
  • Miniaturized Form-factor for Embedded Integration
    • Adopts ApexCore 8-μm infrared detector for highly compact mechanical layout
    • Compact footprint 21×21×31.5mm, weight only 25±2g, perfect for compact embedded equipment
  • Simplified Integration & Comprehensive SDK Support
    • Type-C video and USB2.0 dual interfaces for convenient system embedding
    • Complete SDK resources for Windows, Android and Linux platforms to cut development workload
Product Specifications
Model iHA608W
IR Detectors Indicators
Sensitive Material VOx
Resolution 640×512
Pixel Size 8μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Digital Frame Rate 25Hz
Start-up Time ≤6s
Digital Video RAW/YUV/TMP
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display Medical/Pseudo Color
PC Software
Computer Software Module Control & Video Display
Temperature Measurement
Operating Temperature 10℃~+50℃
Temperature Measurement Range 32℃~+42℃
Temperature Measurement Accuracy ≤±0.5℃ (after 2-minute warm-up, ambient 23±3°C, target 32-42°C)
Measurement Distance 0.5m-5 m; supports multi-distance temperature measurement via SDK
SDK Support Windows/Android/Linux SDK, Realize Video Stream Analysis, Module Control, Comprehensive Array Temperature Measurement, Temperature Imaging, Temperature Window Setting, Multiple Integration
Electrical
Standard External Interface USB(TYPE-C)
Communication Interface USB
Digital Video Interface USB2.0
Supply Voltage 5V±0.5
Typical Power Consumption 0.6W
Optical Lens
Focus Length 4mm
Type of Lens Fixed Focus Athermal
F/# 1
FOV(H×V) 69.2°×55.4°
Mechanical
Size(including lens) 21mm×21mm×31.5mm(including 4mm lens)
Weight (including lens) 25g±2(including 4mm lens)
Environmental Adaptability
Operating Temperature -10℃~+50℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction, 3 Axis, 6 Direction
ESD 6kV contact discharge; 8kV air discharge
Certification
Environmental Certification ROHS2.0/REACH
Industrial Applications

The iHA608W thermal camera is widely used in Medical Diagnosis, Disease Screening, Animal Agriculture, and Home Medical Care.

About SensorMicro

SensorMicro is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.

SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of SensorMicro enables it to meet the growing demand from all existing and emerging markets.

Frequently Asked Questions
1. What is infrared thermal imaging?
Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.
2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
